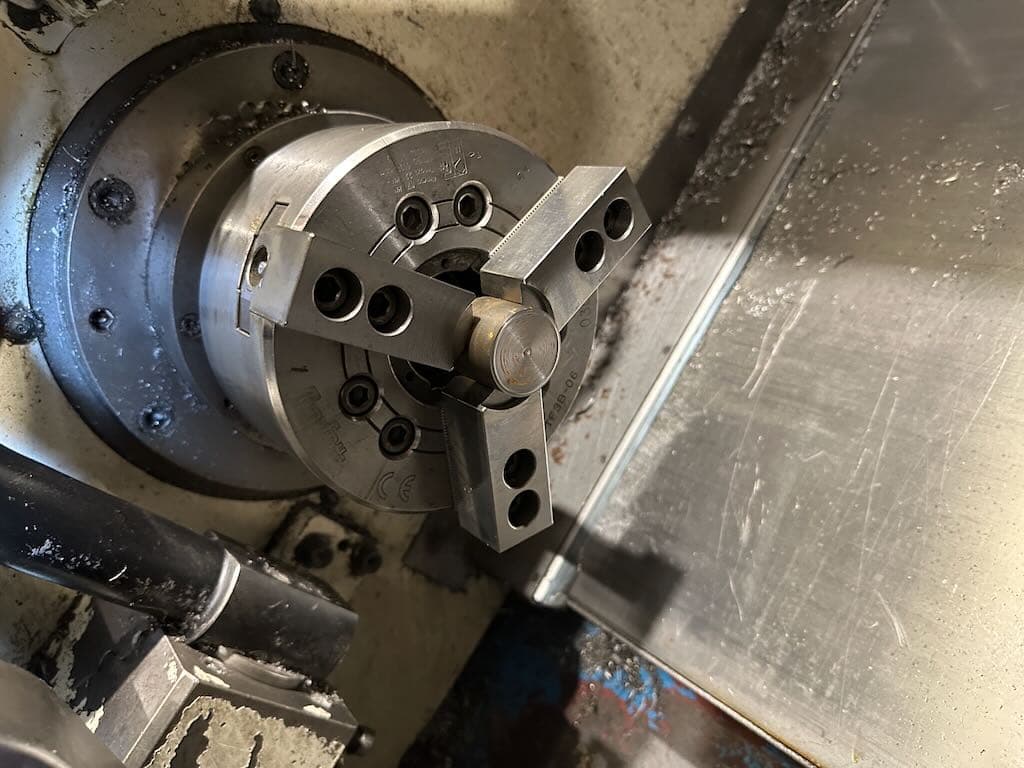

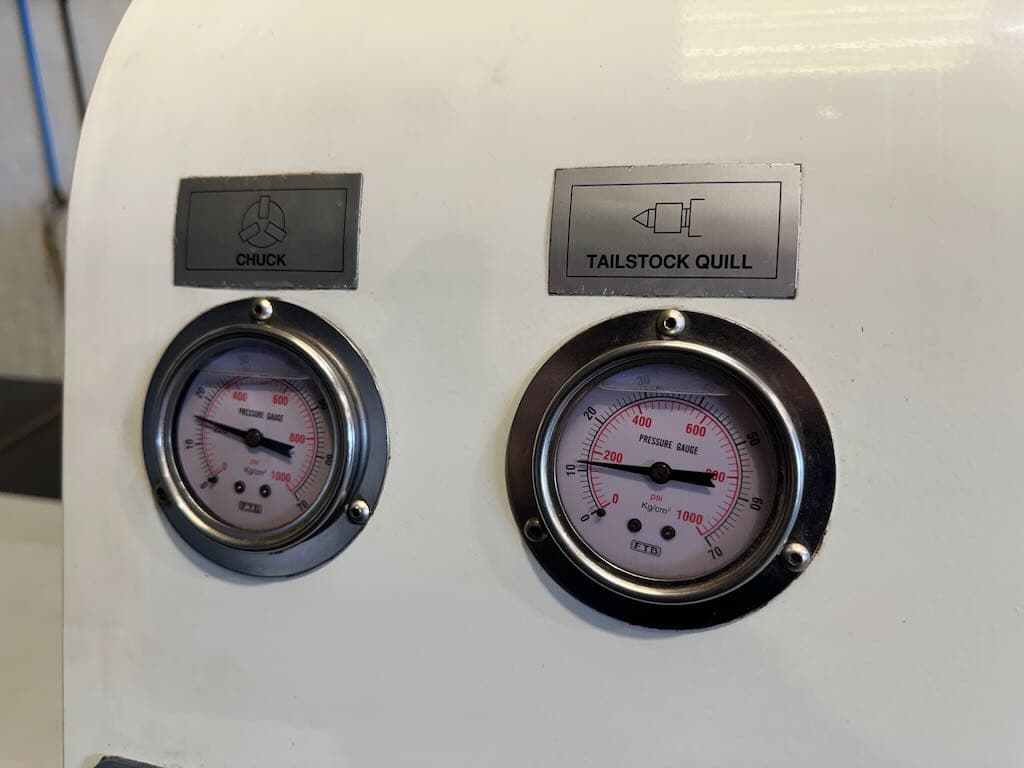

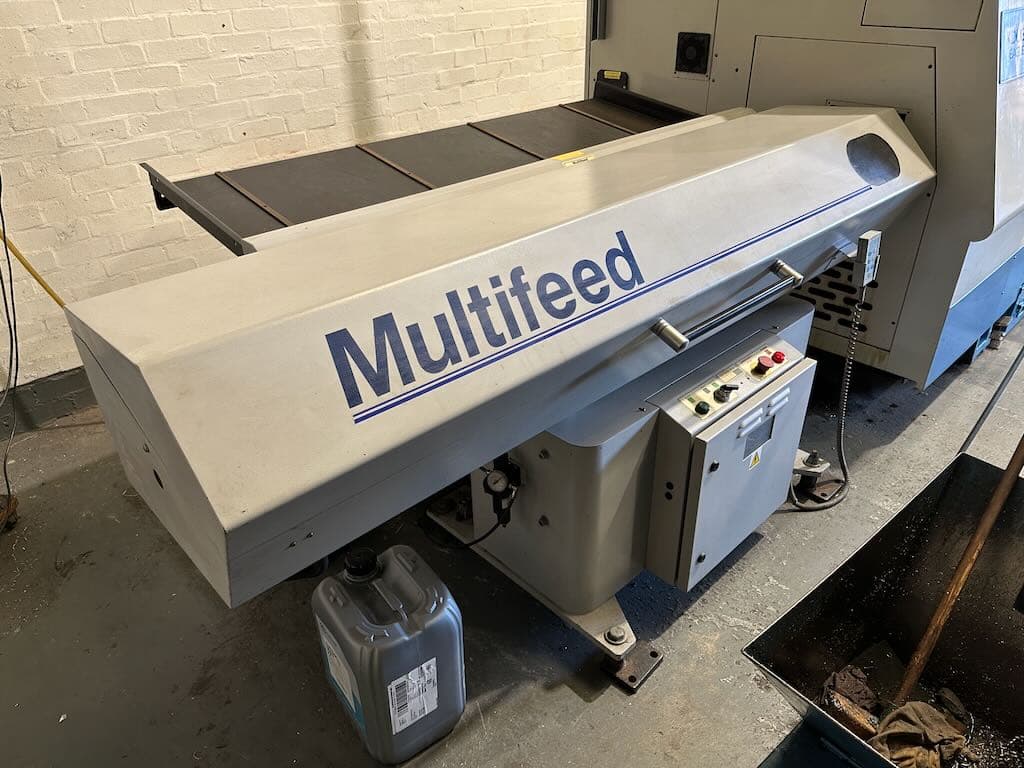

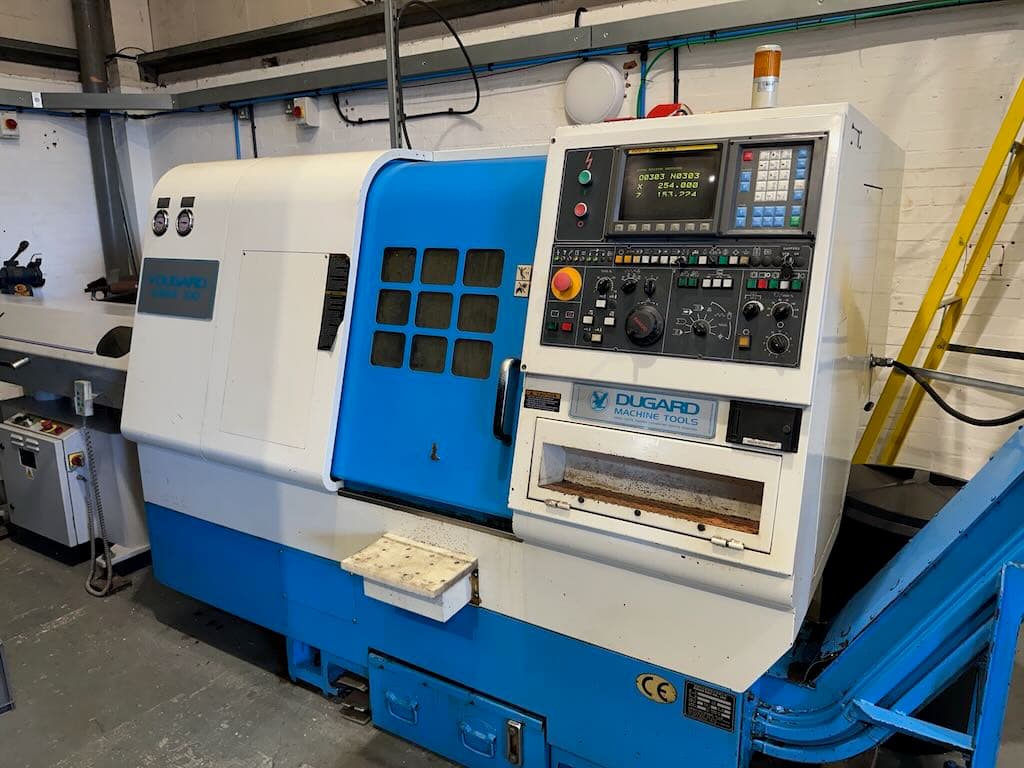

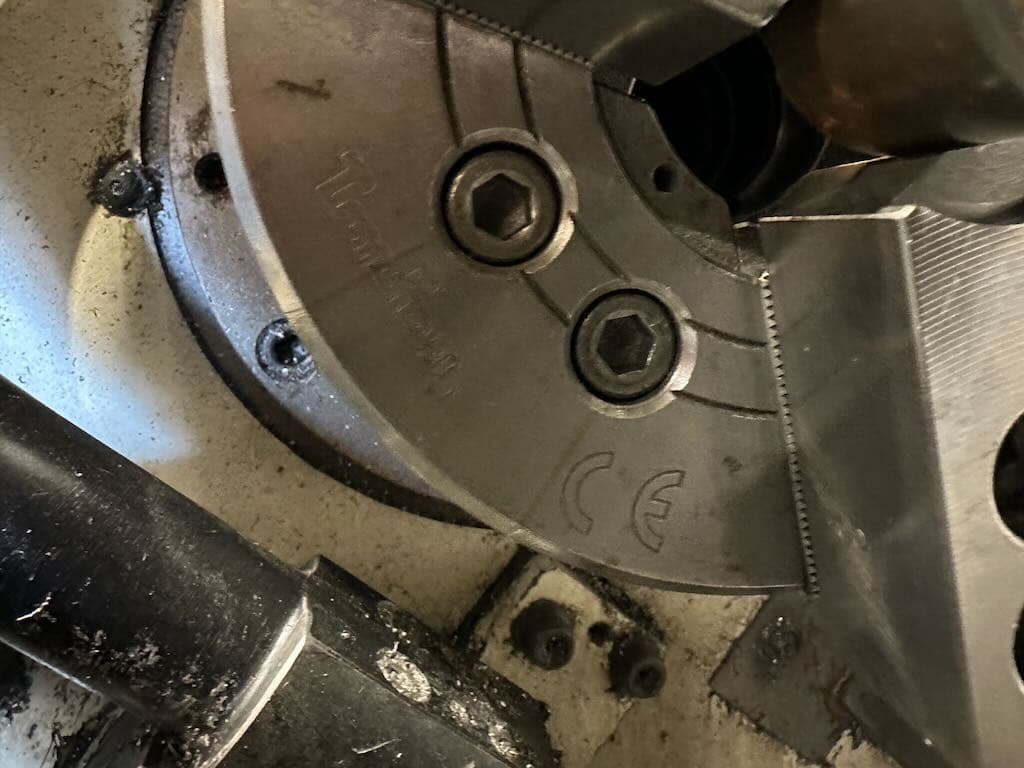

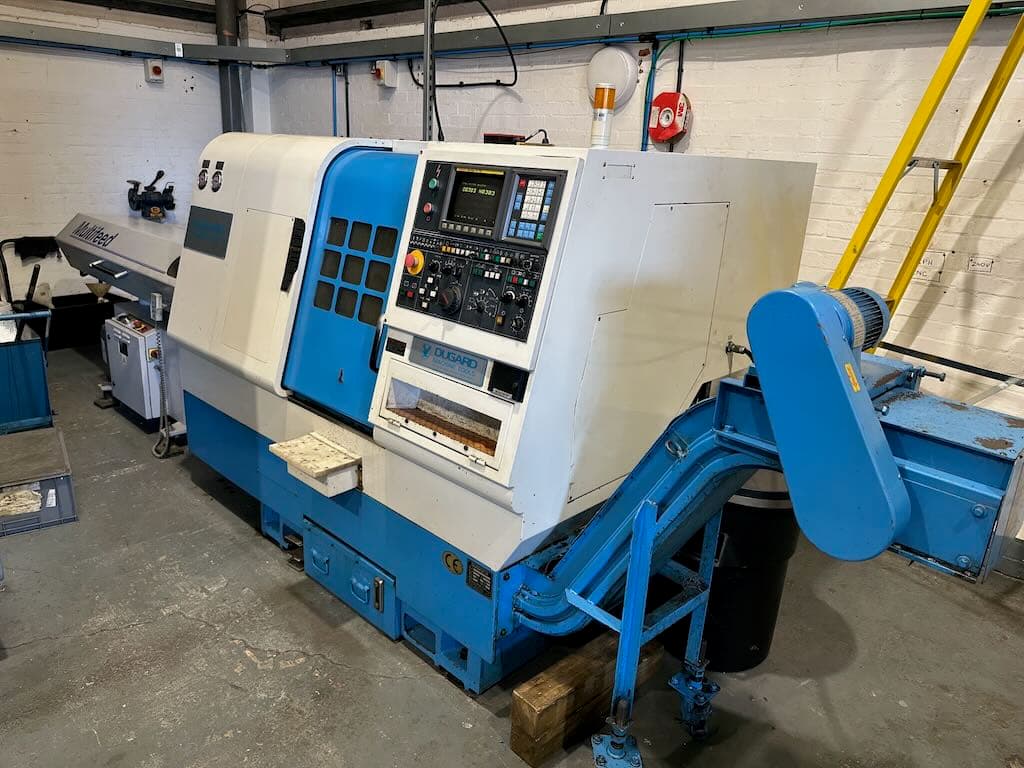

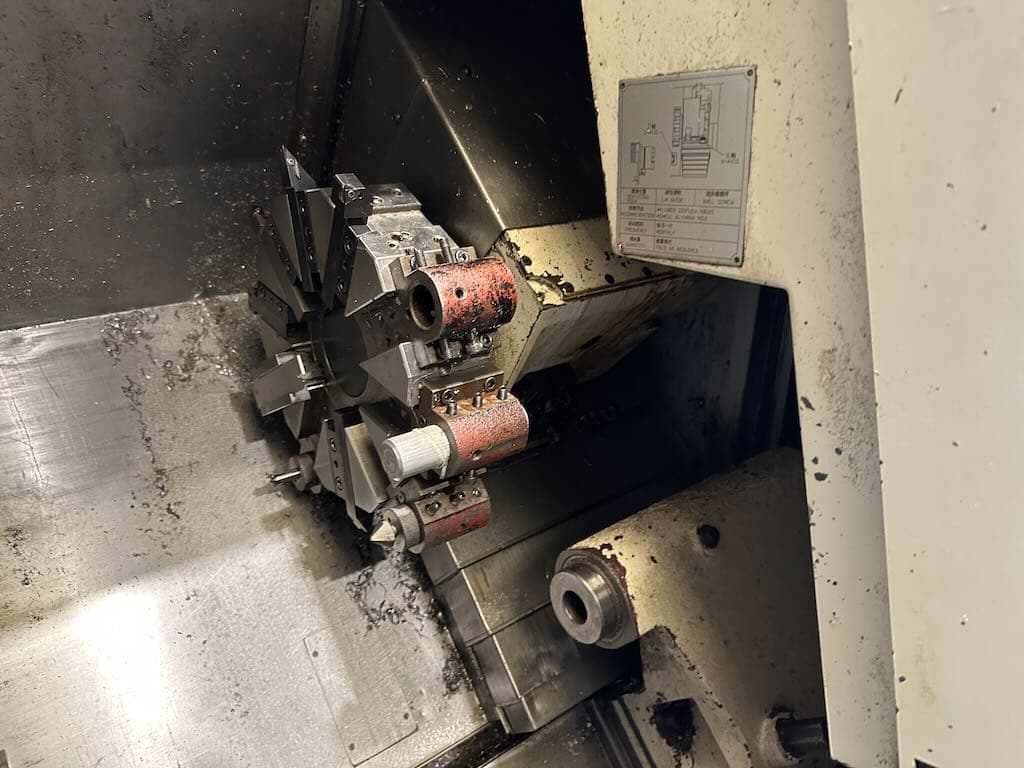

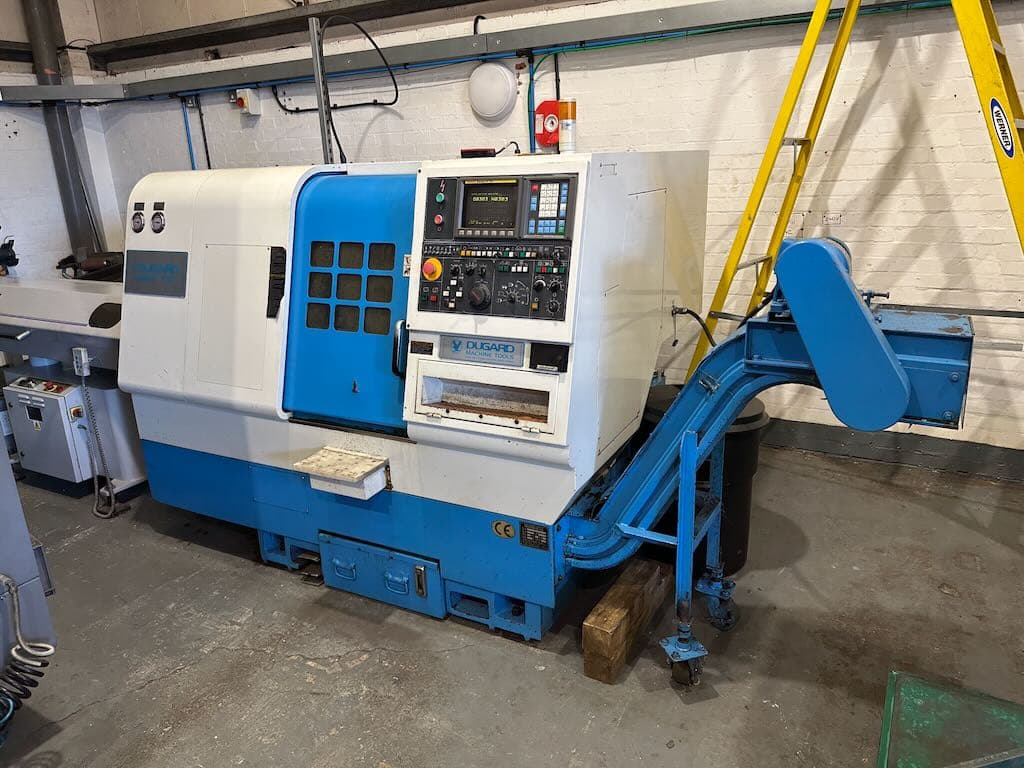

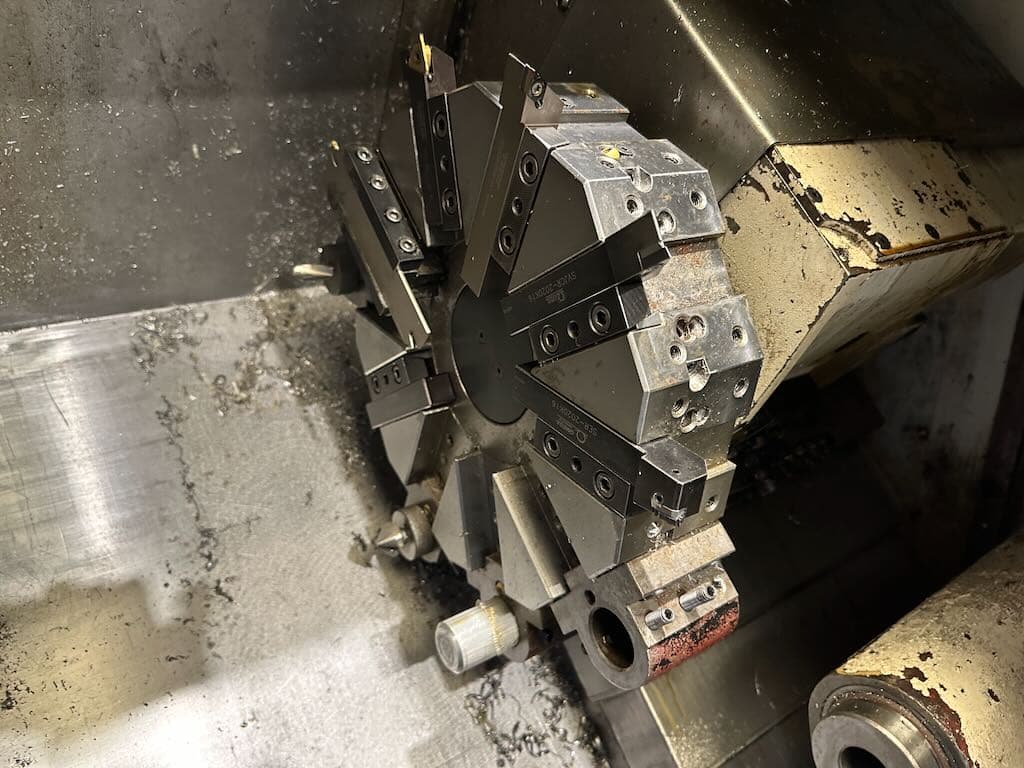

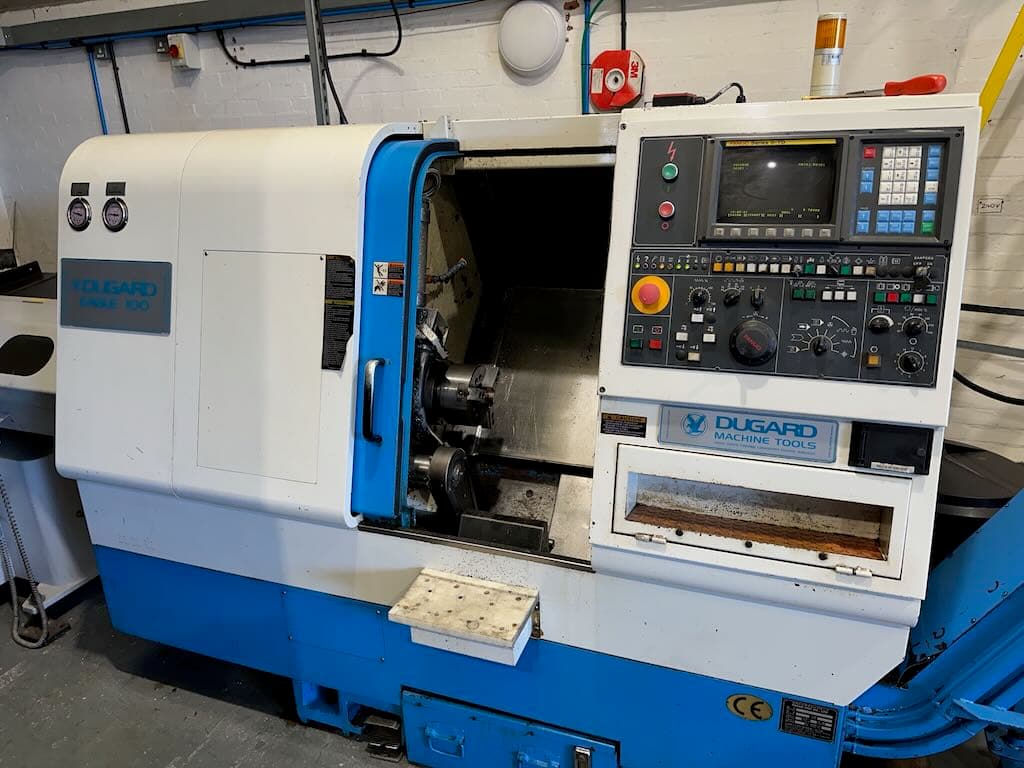

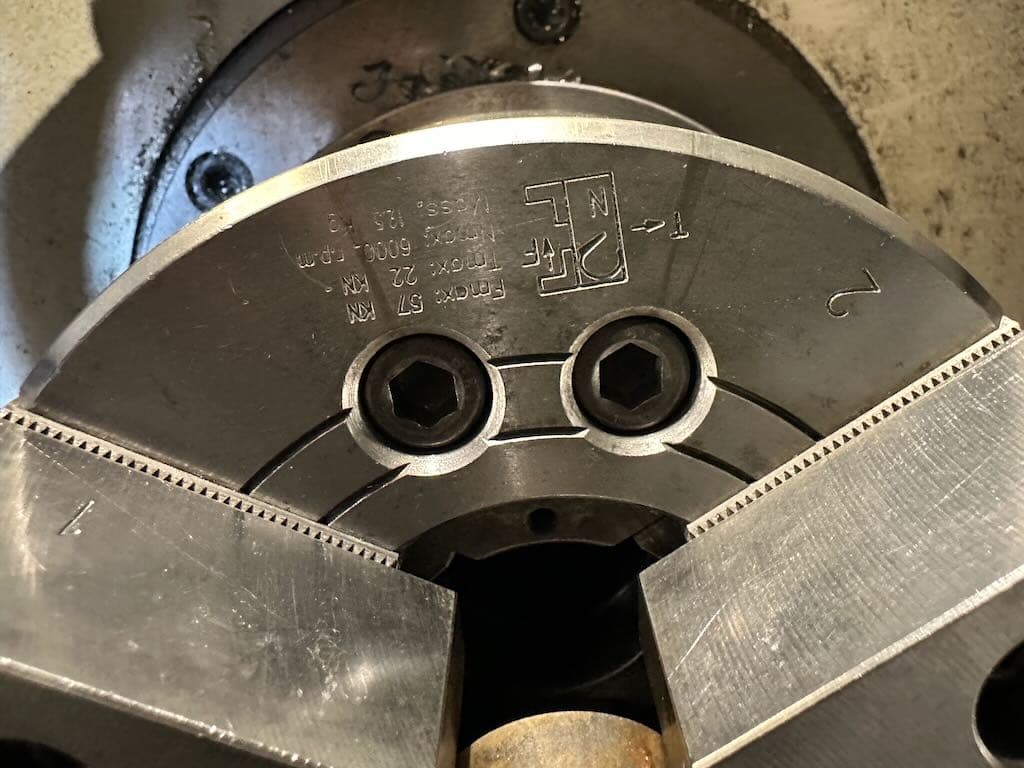

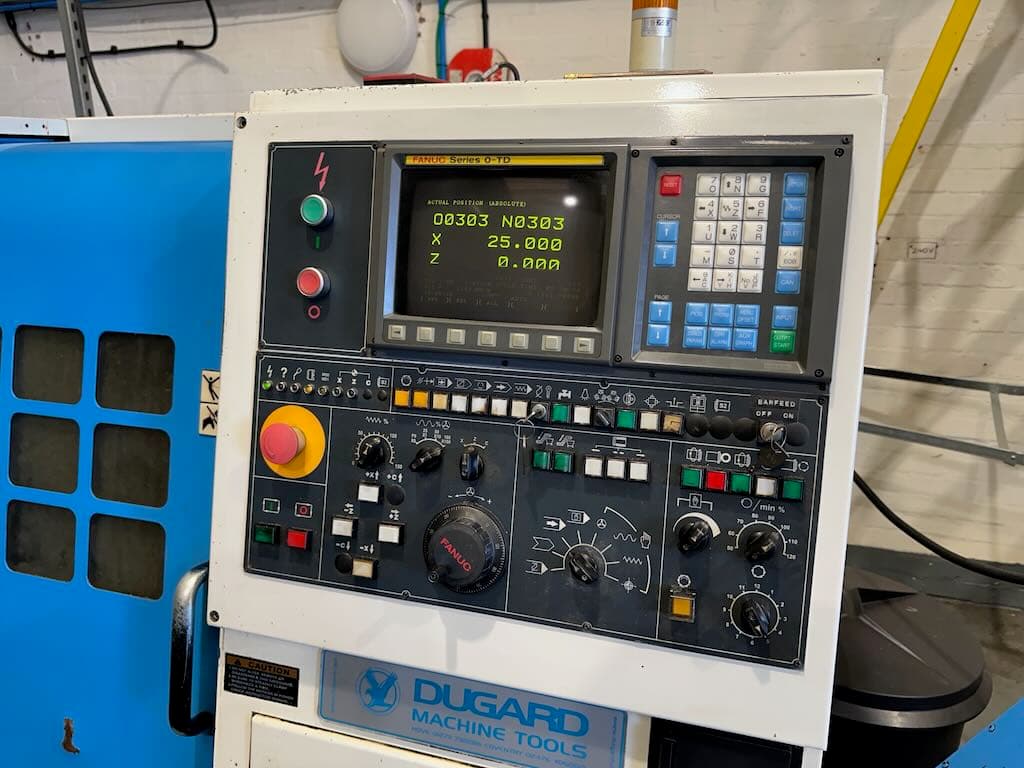

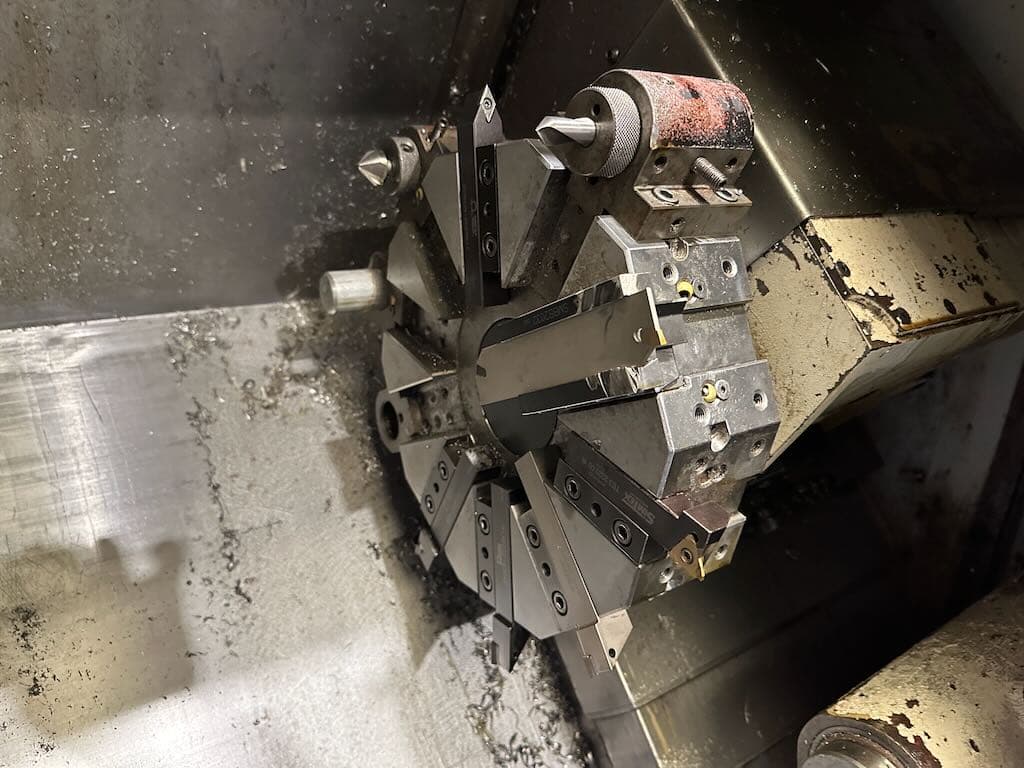

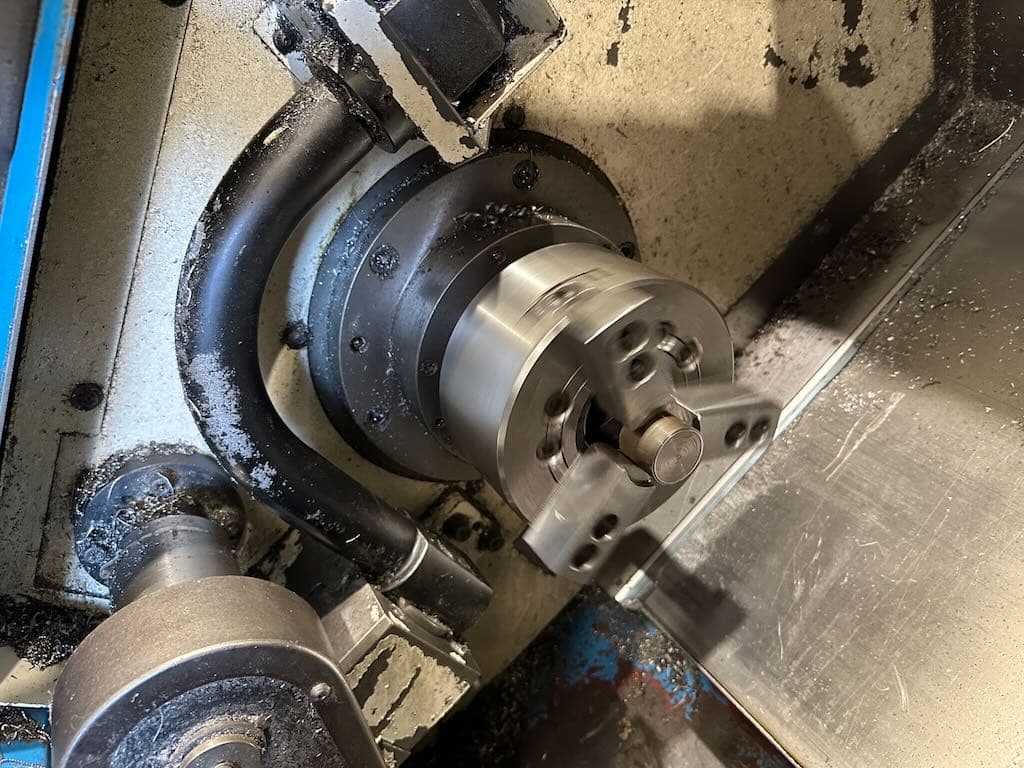

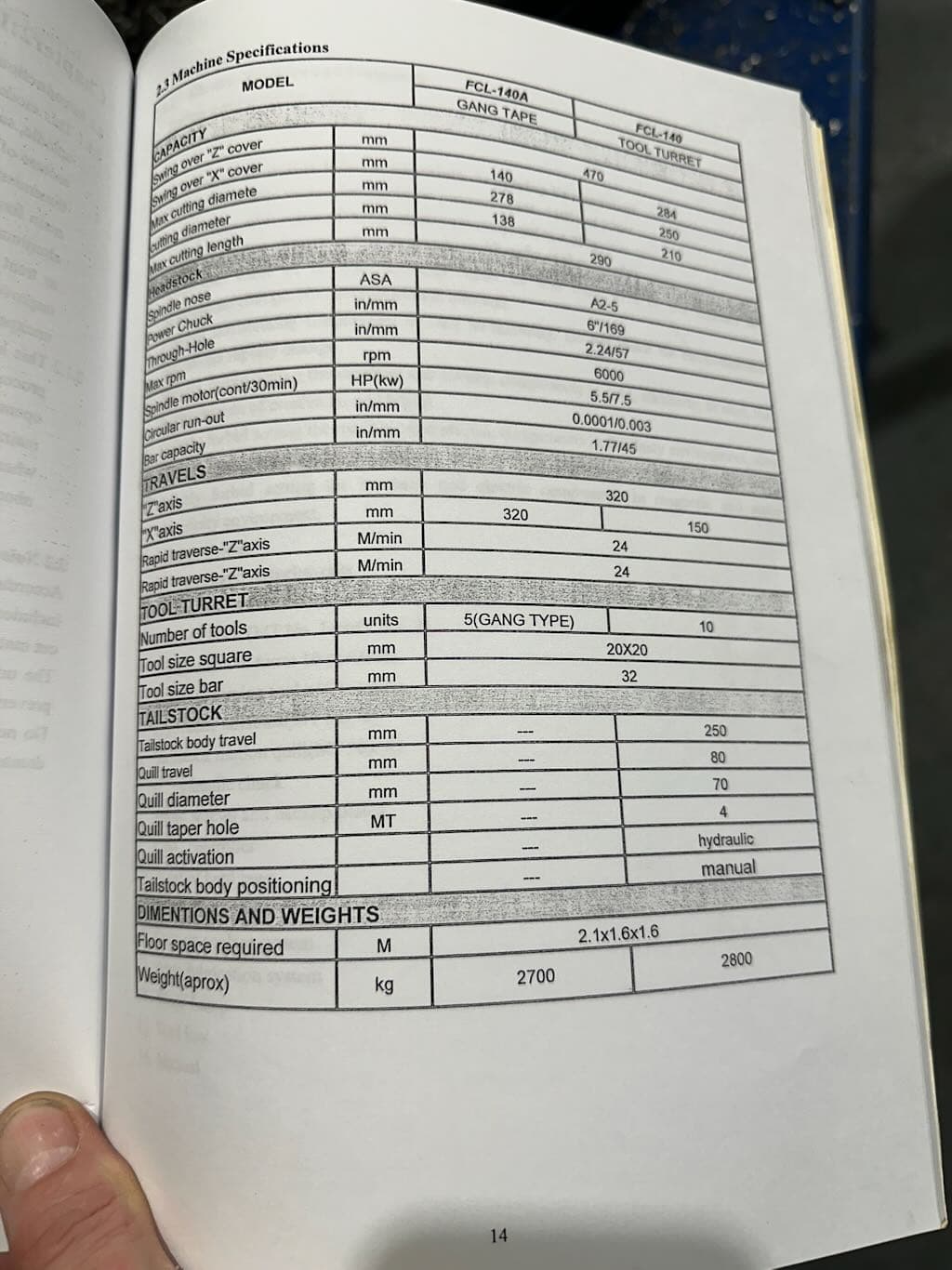

Control Fanuc O-TD<br>Swing Over "Z" Cover: 470mm<br>Swing Over "X" Cover: 284mm<br>Max Cutting Diameter: 250mm<br>Cutting Diameter: 210mm<br>Max Cutting Length: 290mm<br>Spindle Nose: A2-5<br>Power Chuck: 169mm<br>Through Hole: 57mm<br>Max Rpm: 6000<br>Spindle Motor: 7.5 kW<br>Circular run-out: 0.003mm<br>Bar Capacity: 45mm<br>Z Axis Travel: 320mm<br>X Axis Travel: 150mm<br>Z Axis Rapid Traverse: 24 m/min<br>Number of tools: 10<br>Tool Size Square: 20x20mm<br>Tool Size Bar: 32mm<br>Tailstock Body Travel: 250mm<br>Quill Travel: 80mm<br>Quill Diameter: 70mm<br>Quill Taper Hole: MT 4<br>Quill Activation: Hydraulic<br>Tailstock Body Positioning: Manual<br>Floor Space Required: 2.1 x 1.6 x 1.6m (L x W x H)<br>Weight (Approx): 2800kg
Dealer: Okuma
