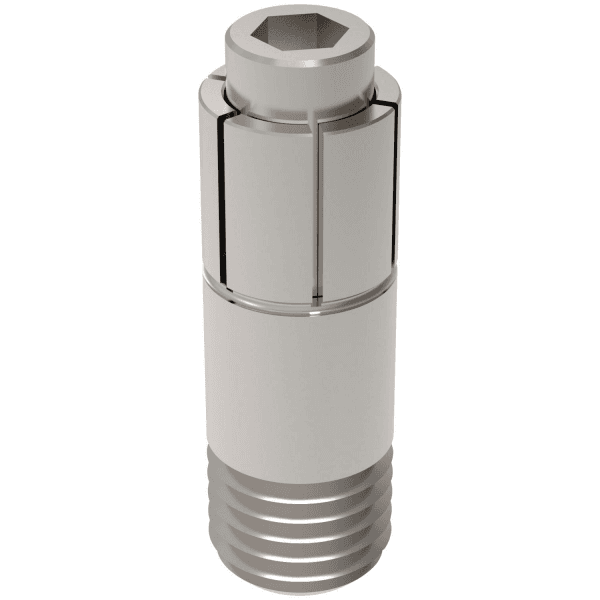

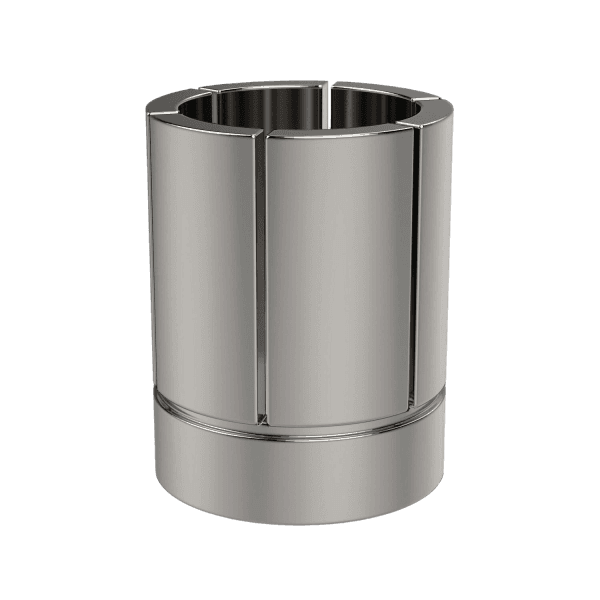

Modular XYZ Xpansion™ Pins for Tombstone, Grid Plate and Fixture Plate applications. The unique, patent pending design provides accurate location, repeatability and high holding forces for securing parts on the inside diameter. These pins are available in press fit or thread fit versions. Both styles of the pins are manufactured from “heat treatable” 17-4PH stainless steel and the Press Fit Pins are also available in 12L14 mild steel so that users can easily machine them to no-standard diameters if required. The top of the Pins have a slight taper creating maximum line contact in bore and providing clearance during load/unload. Designed for quick set-ups on secondary operations, material coming off prep stations, water-jets or even applications outside of your machining centers. Threaded pins incorporate an internal hex for simple installation and removal. Press fit pins have an internal thread to aid insertion and removal.
