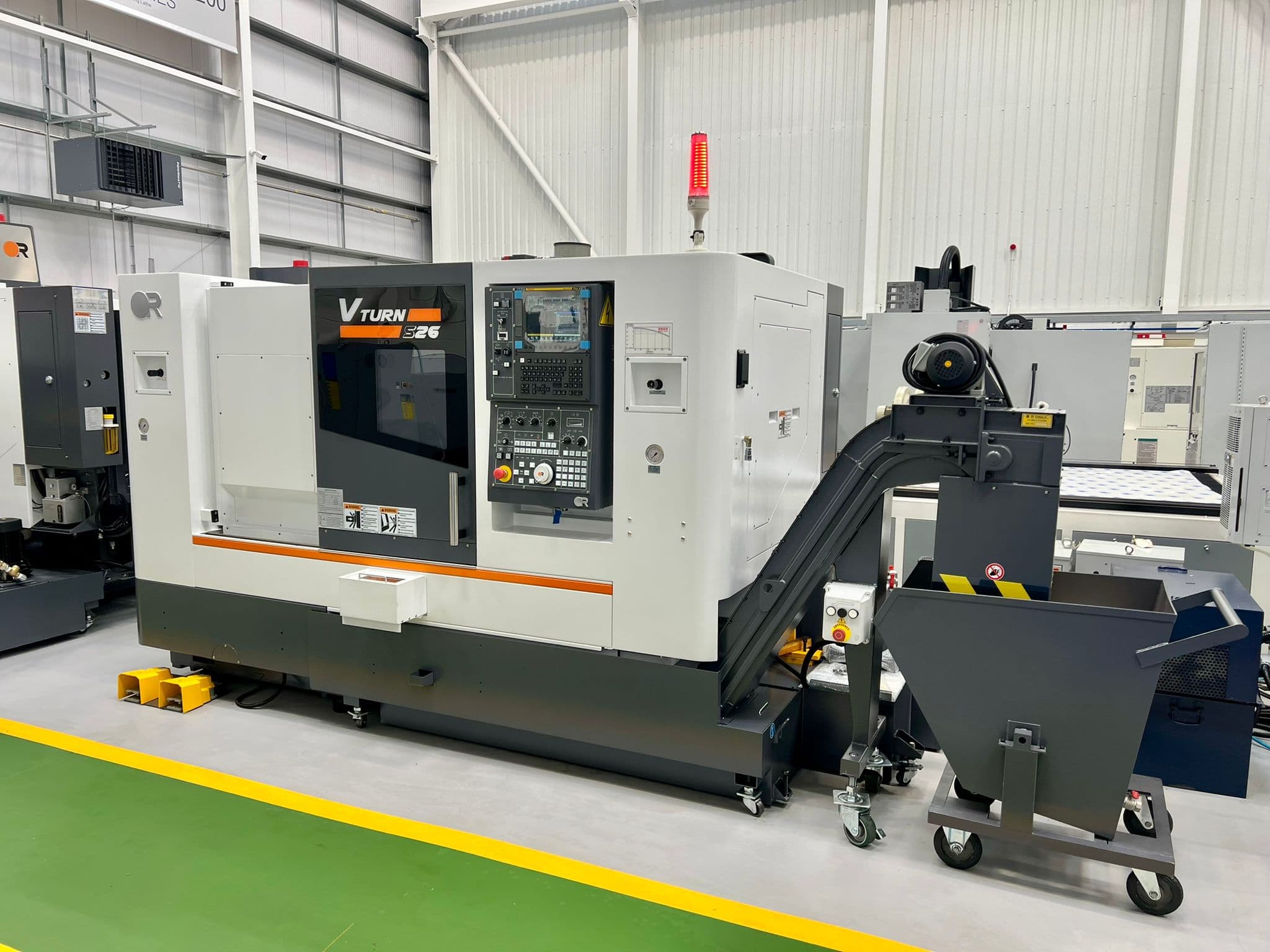

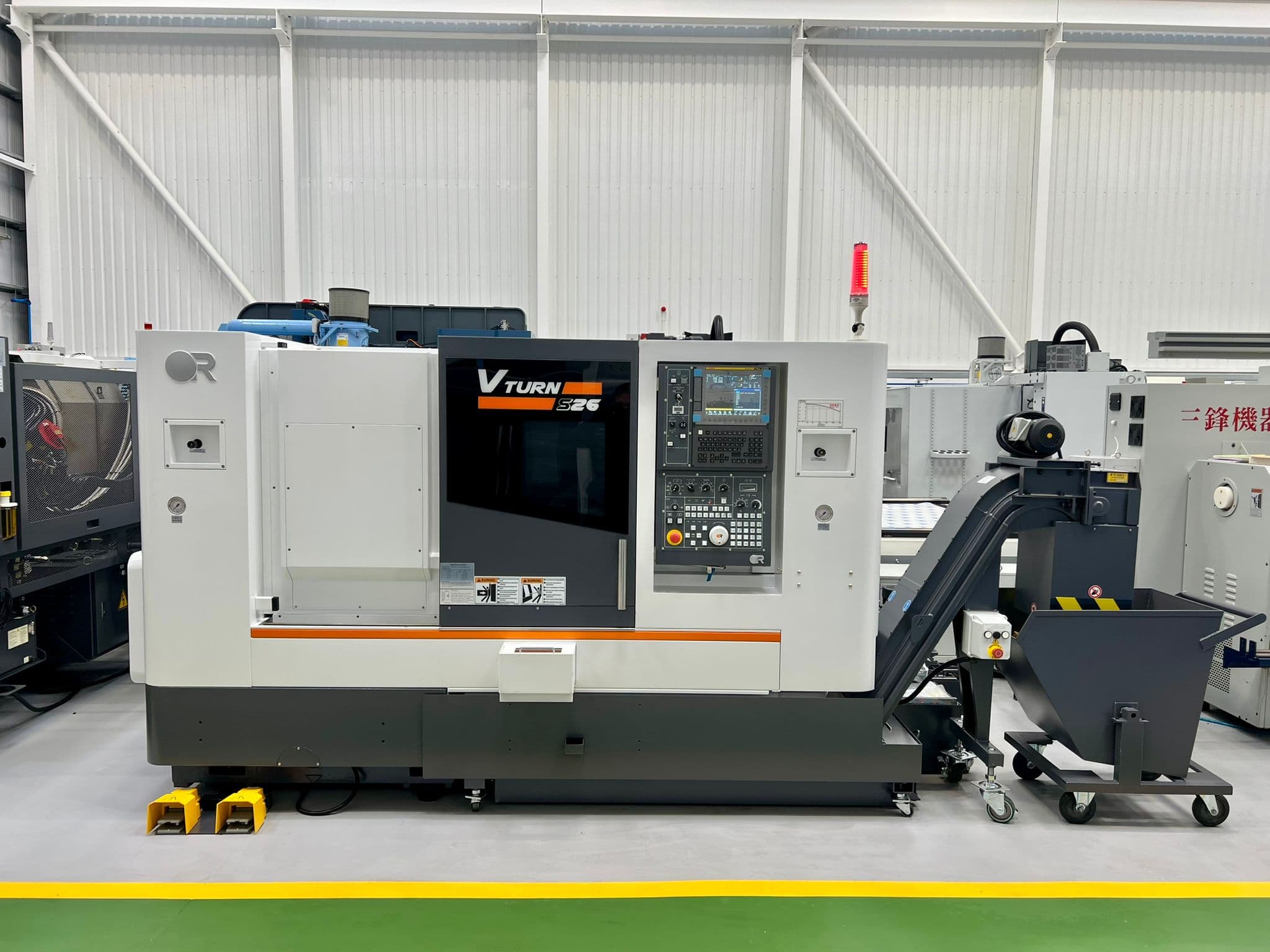

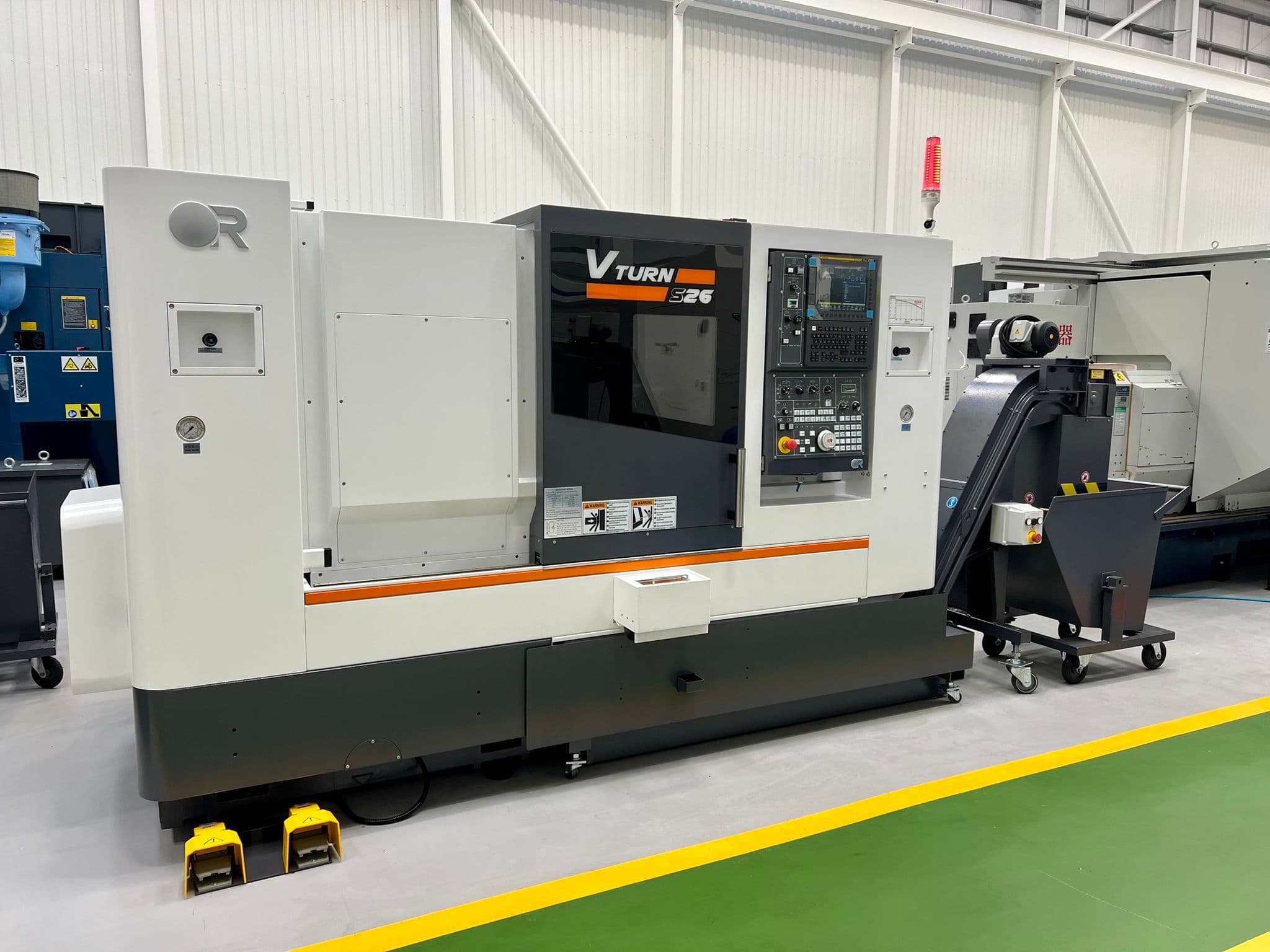

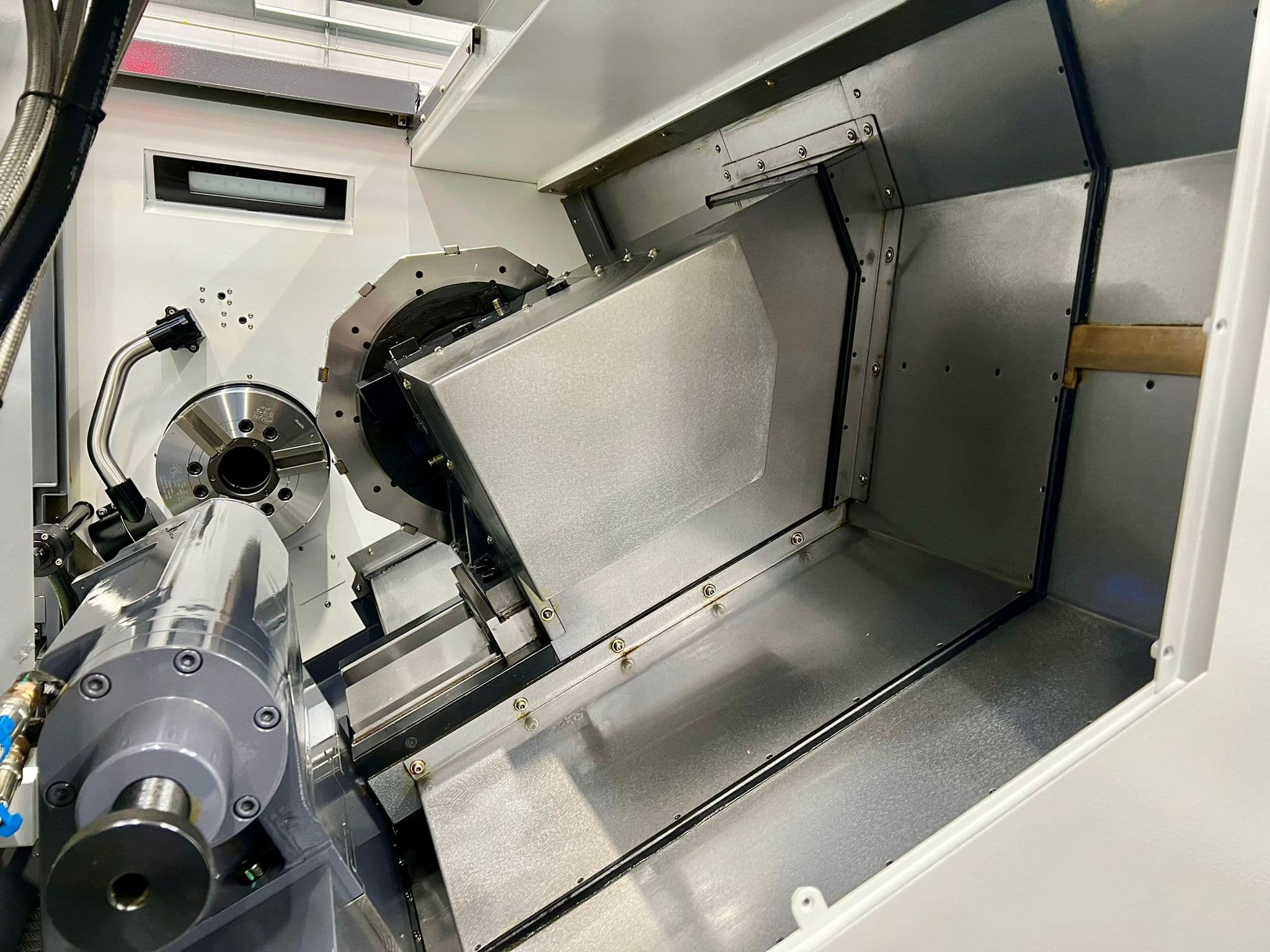

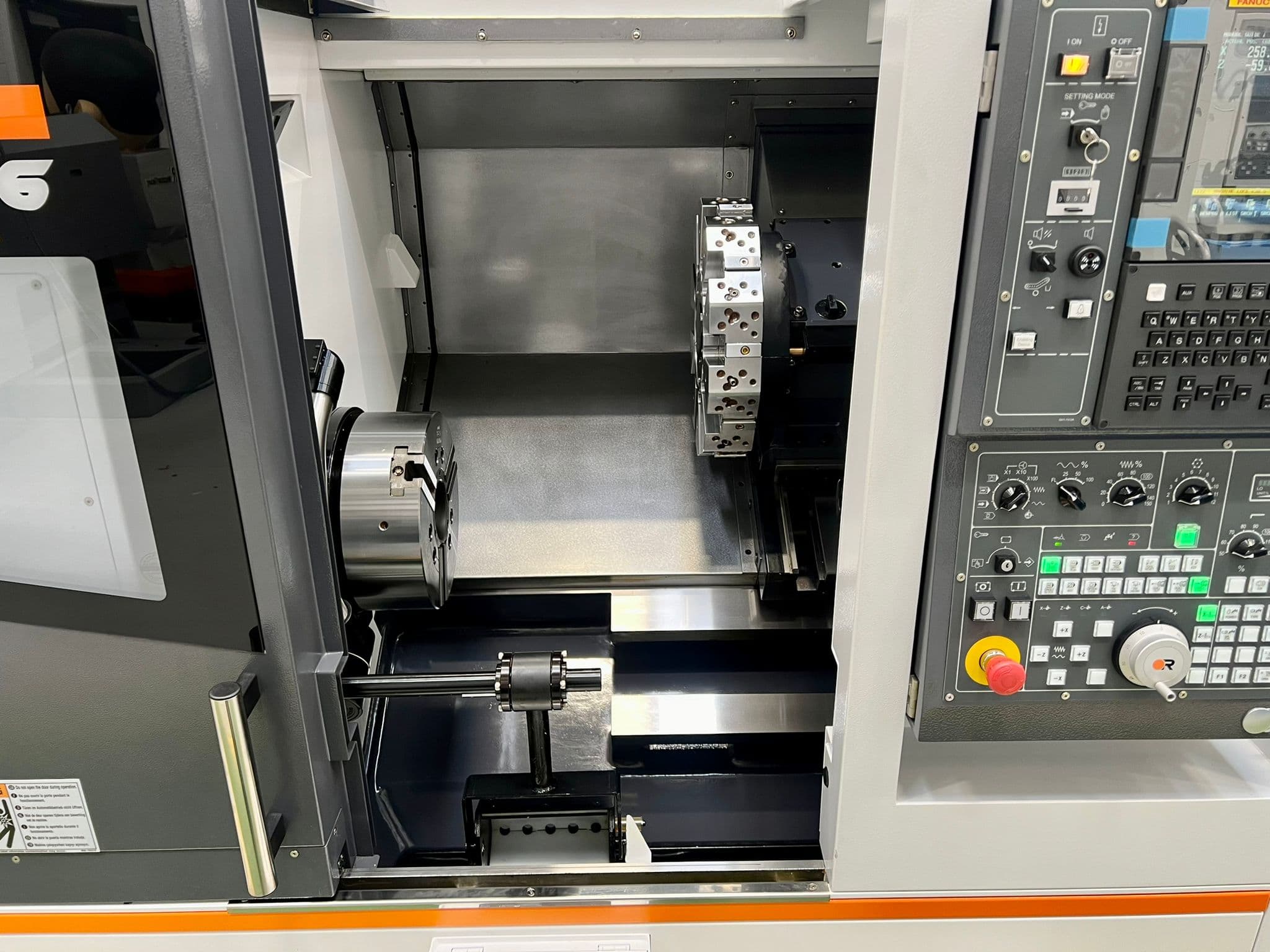

NEW VICTOR S26/60 LSB Horizontal Turning Lathe with Fanuc 0i-TF Plus Control

Description

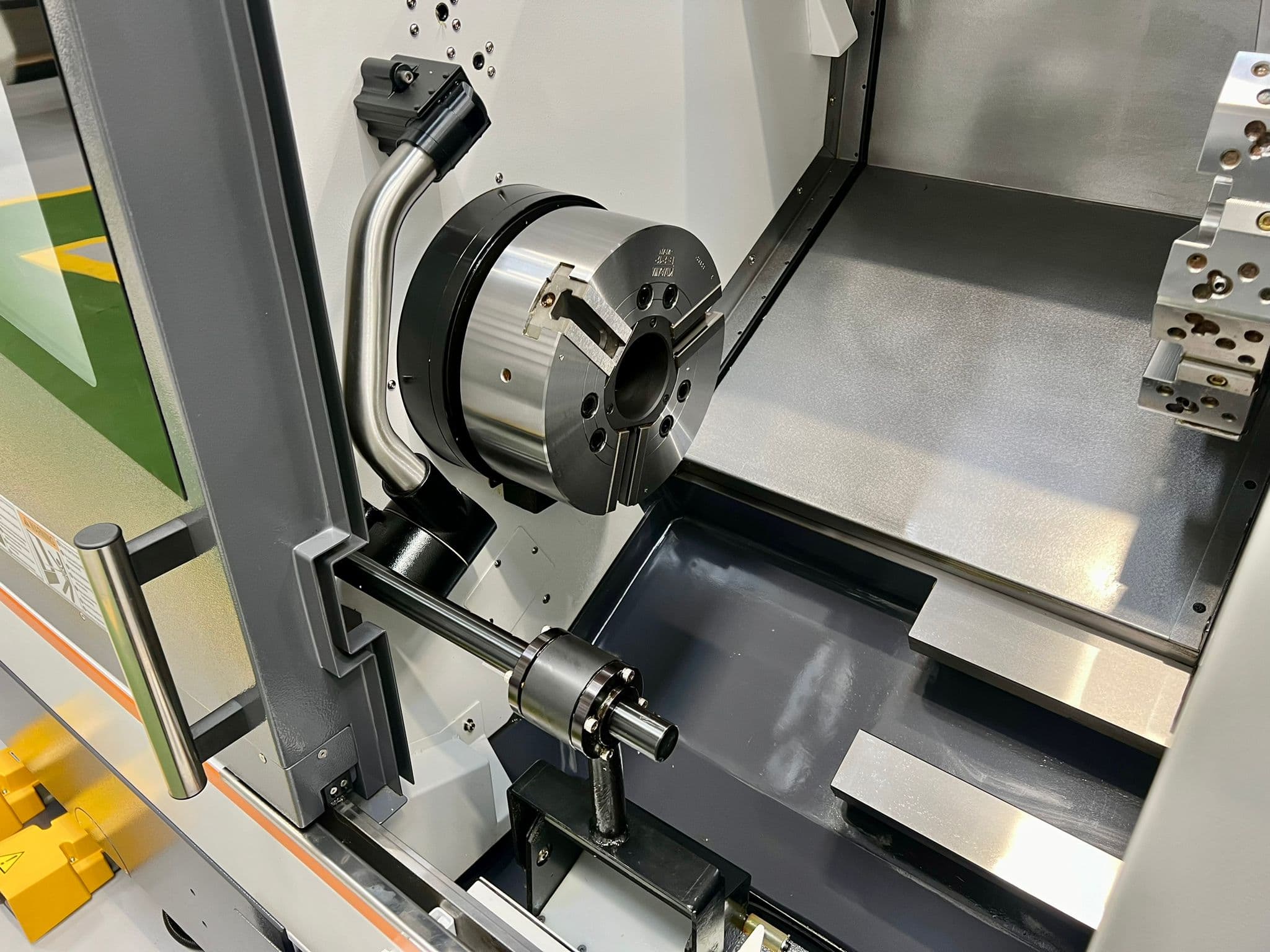

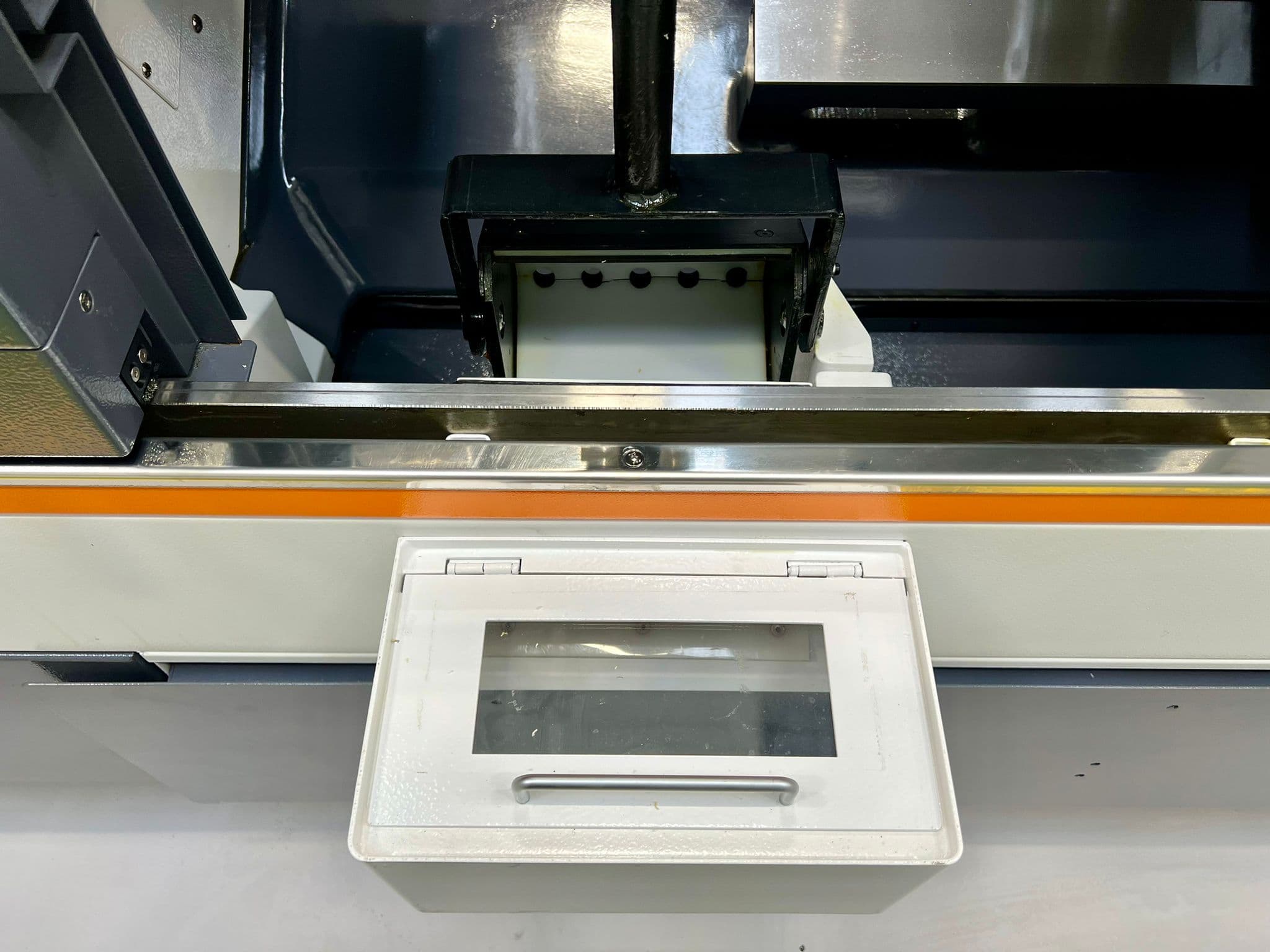

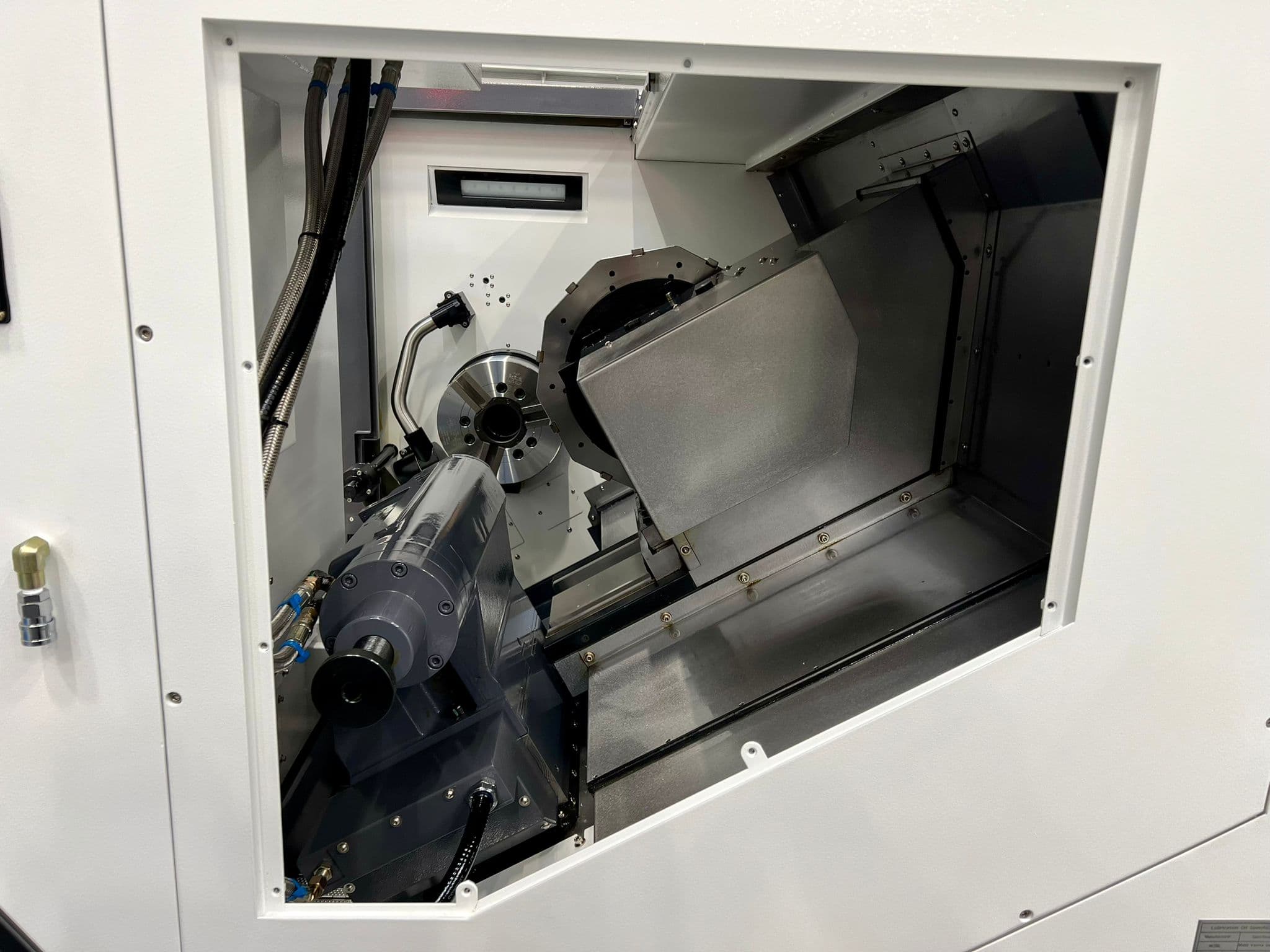

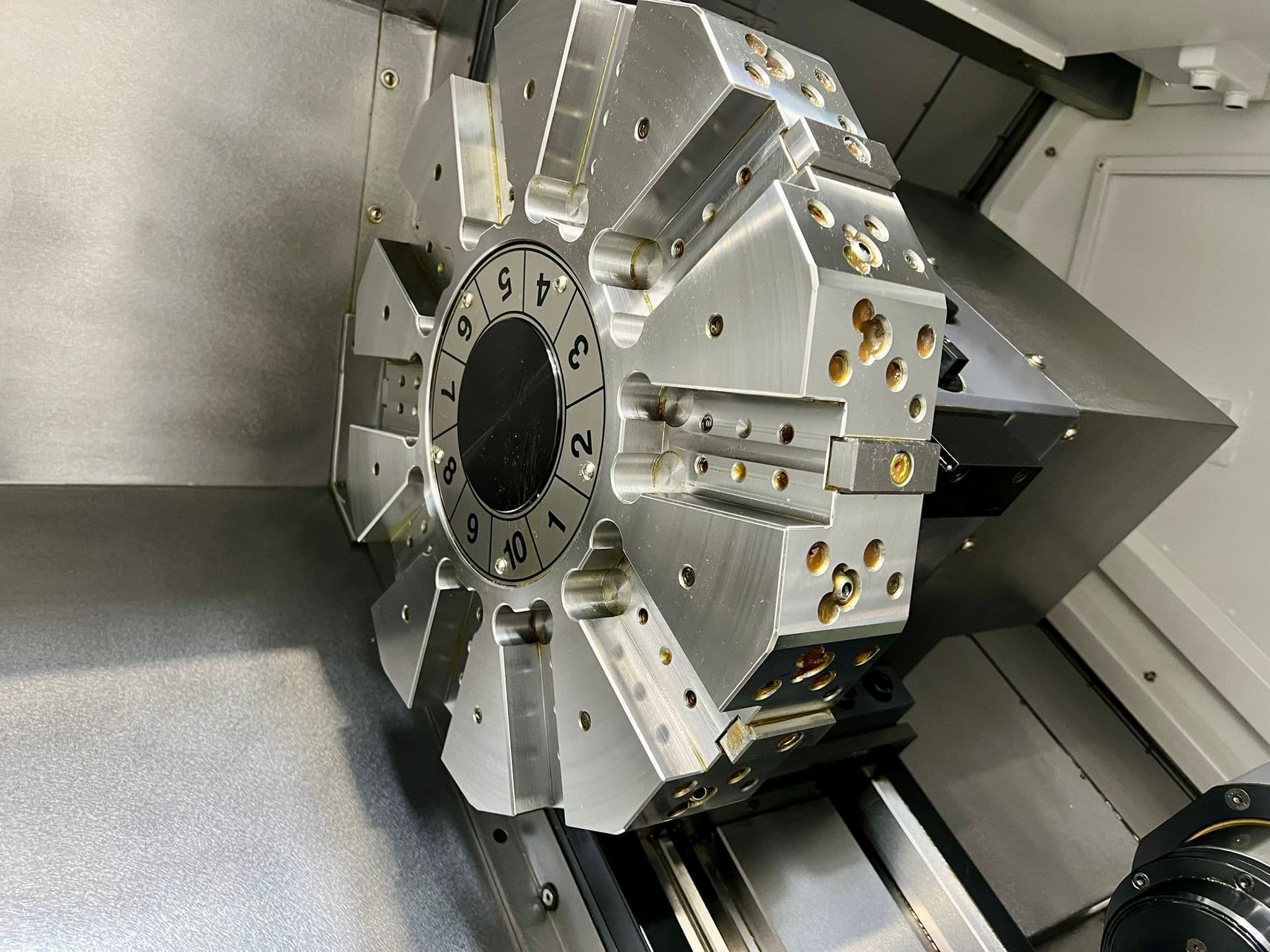

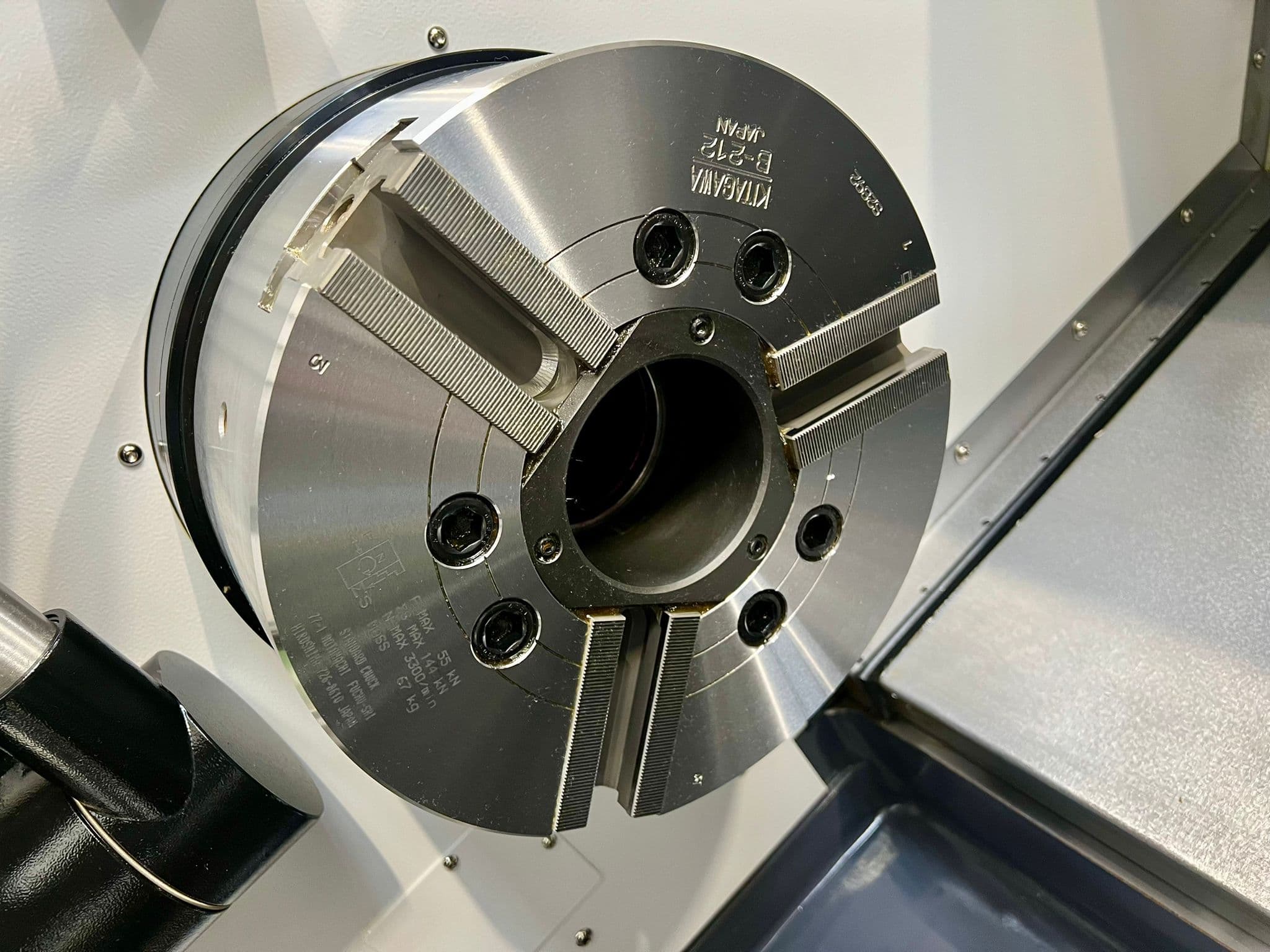

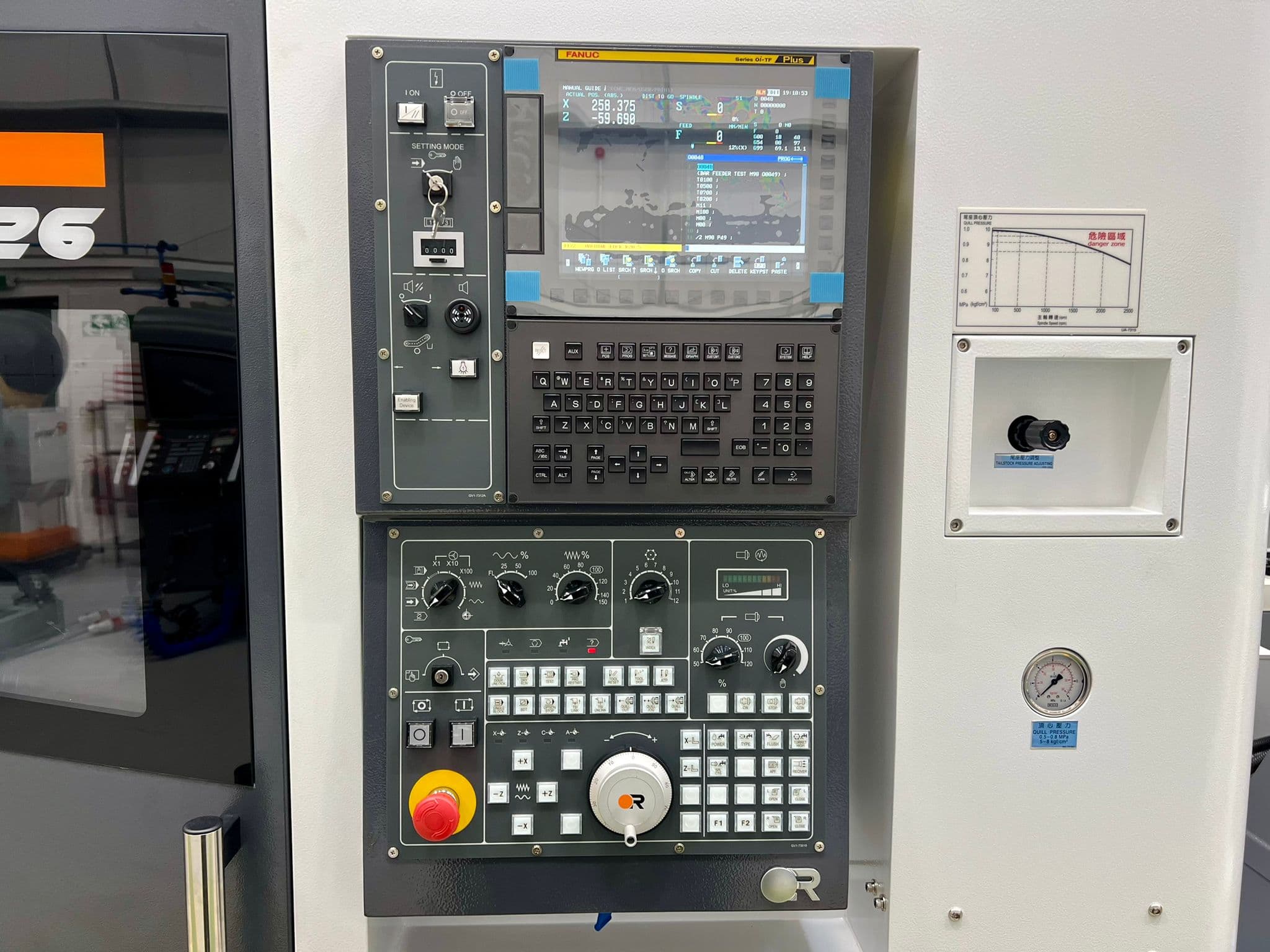

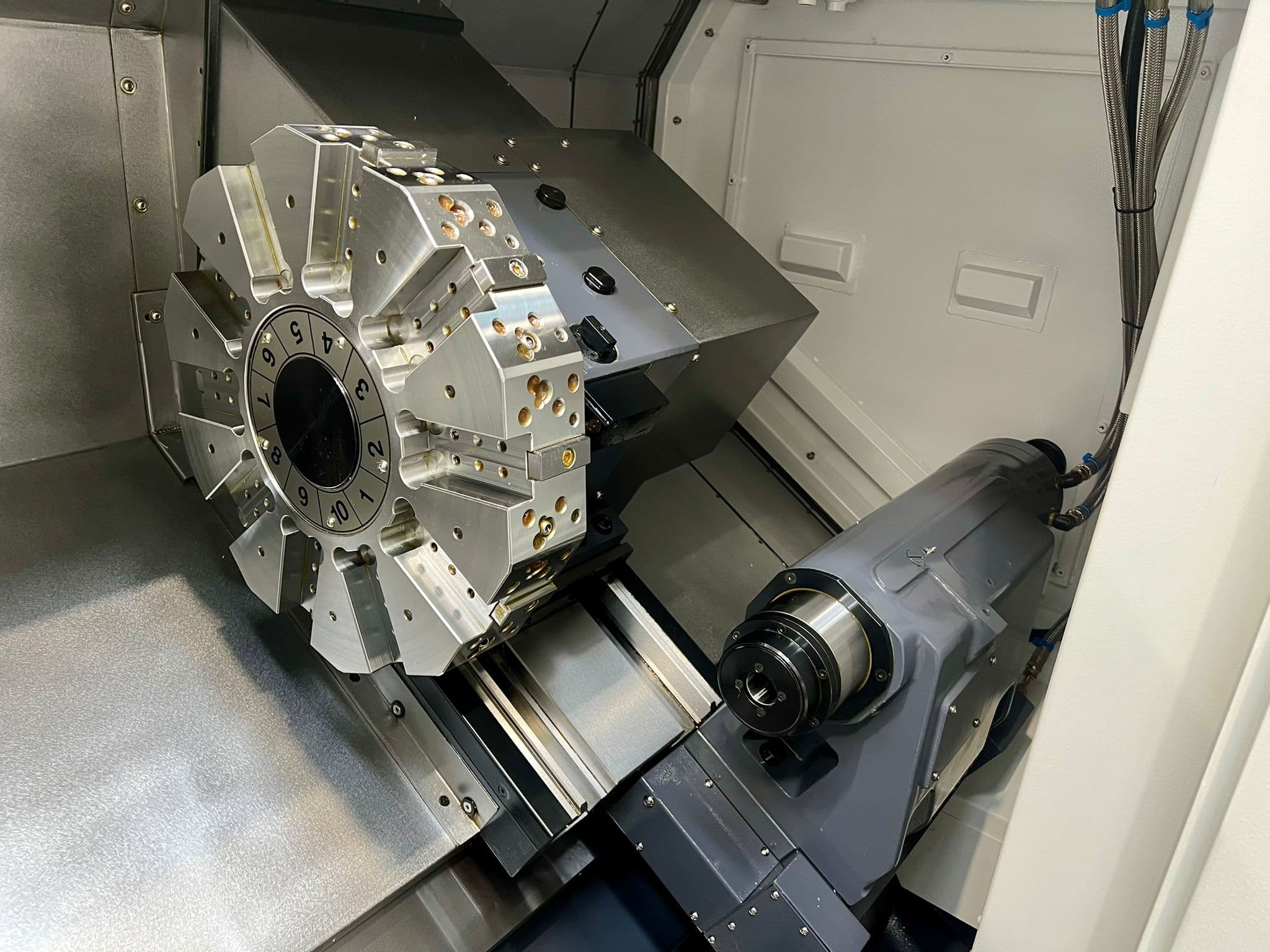

Swing over bed dia 600mmStandard turning dia 350mmMaximum turning dia. 430mmSwing over carriage dia 480mmBetween centres 640mmBar capacity (hole through draw bar) 91mmX/Y Travel 210+30/610mmRapid feed X/Z axis m/min 18/24Feed motor kW 3/4No. of tools no. 10Tool shank size 25mmMax. boring bar dia. mm 50 (BMT-65)10.4” Colour display with QWERTY keypadsManual Guide I2GB CF Card4 Additional ‘M’ codes10 Station Bolt on turret12” Kitagawa hydraulic chuck with 91mm bar capacityProgrammable tailstock MT4 liveChip conveyor & cartHigh-pressure coolant (Grundfos SPK4-8)Renishaw MTPParts catcherBar feed interfaceOil skimmerAir conditioner for electrical cabinetFully enclosed splash guardingZ-Axis servo motor a22/3000i (4kW) (8mm pitch)Hand wheelCoolant flush on Z-Axis cover3 sets of soft jaws
