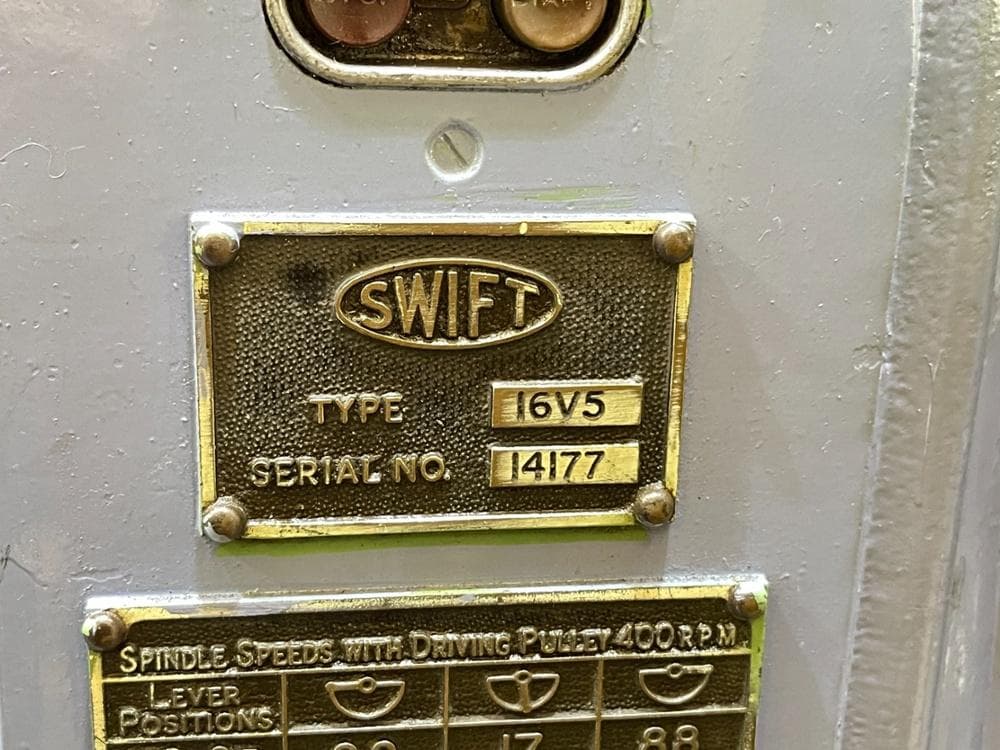

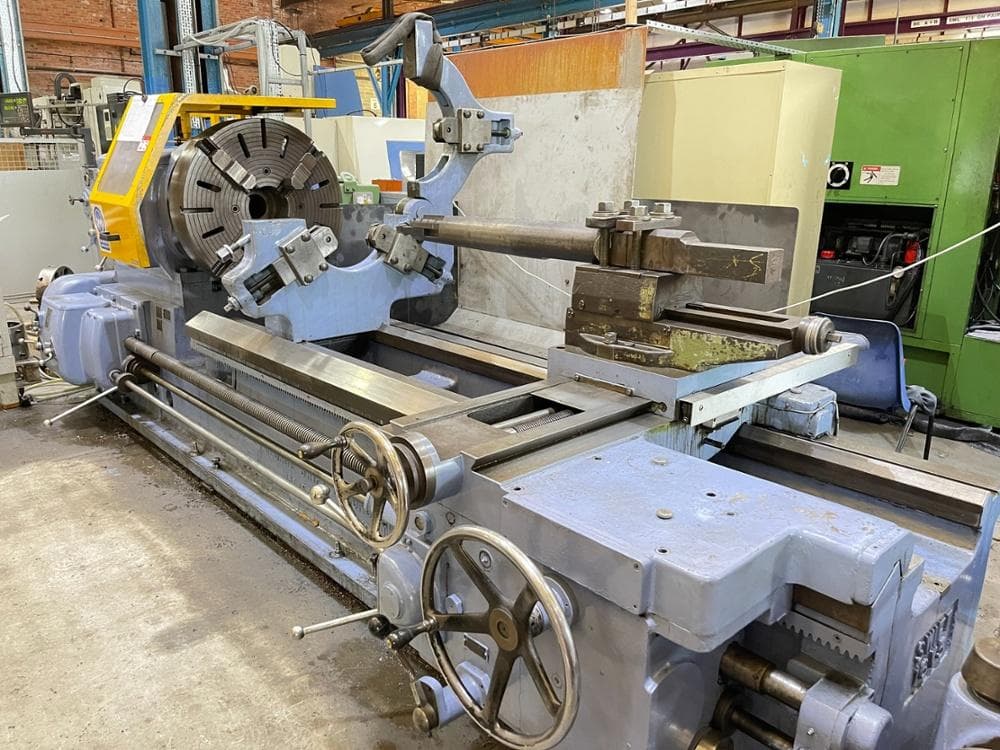

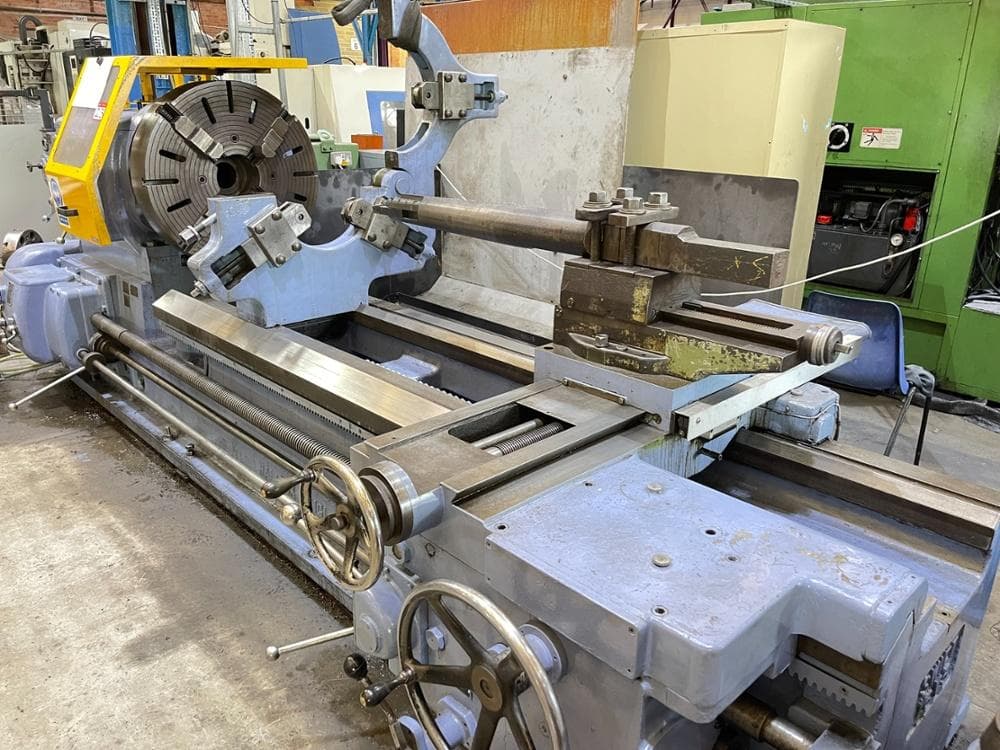

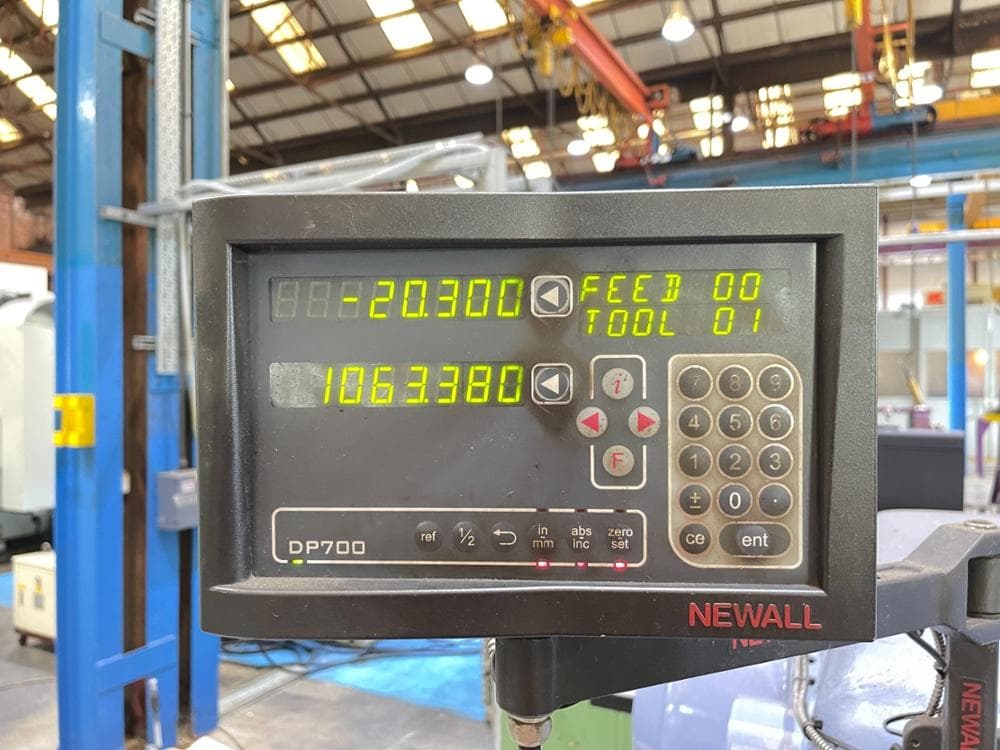

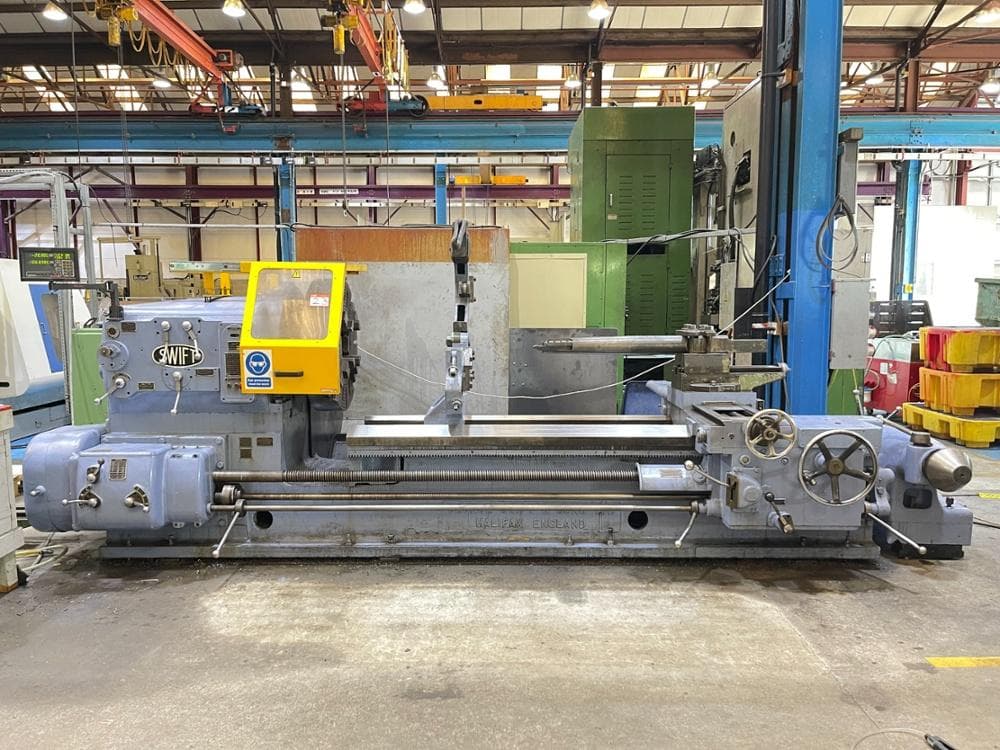

SWIFT 16V5 Gap Bed Heavy Duty Centre Lathe with Newall DP700 DRO

Description

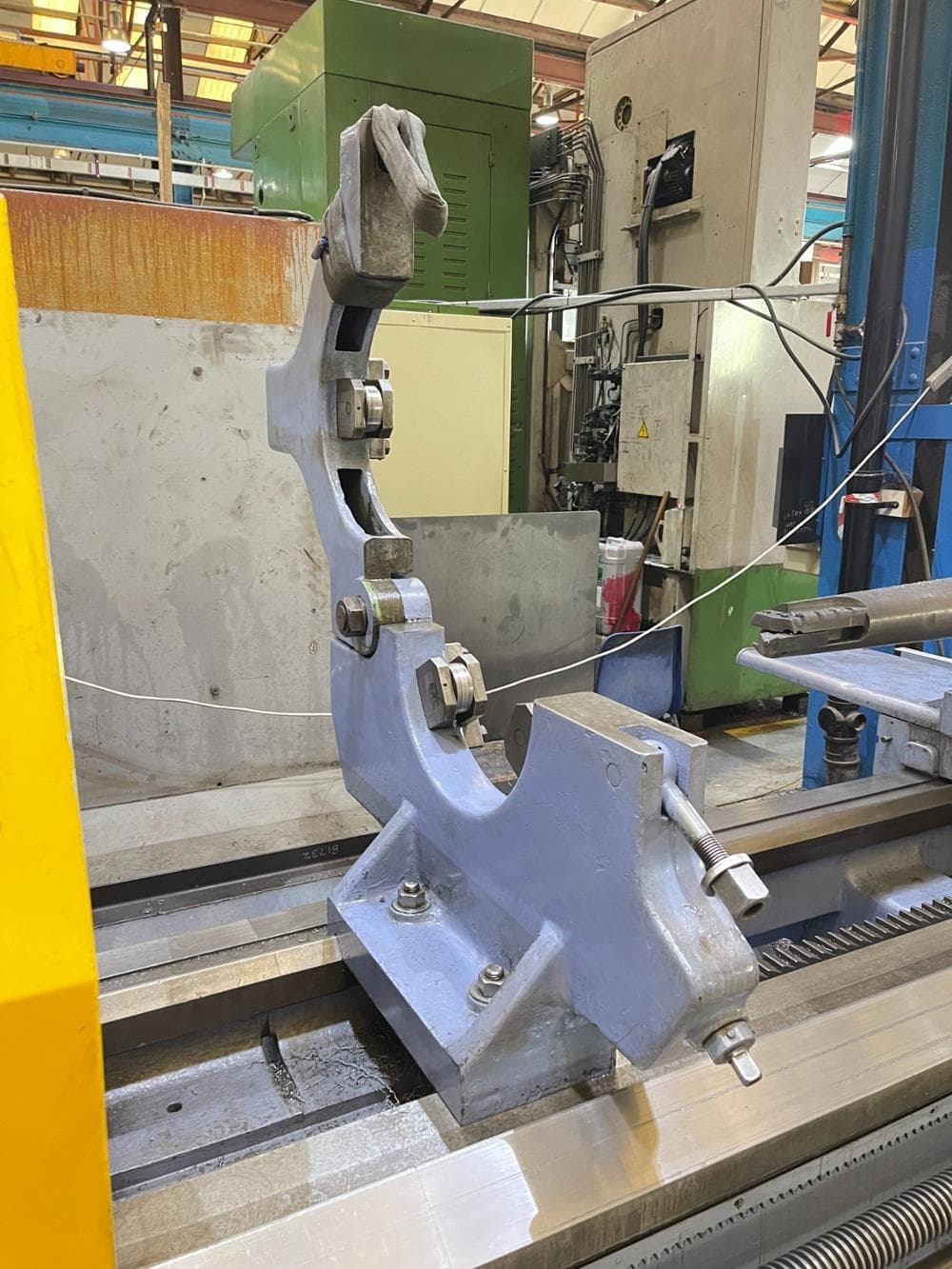

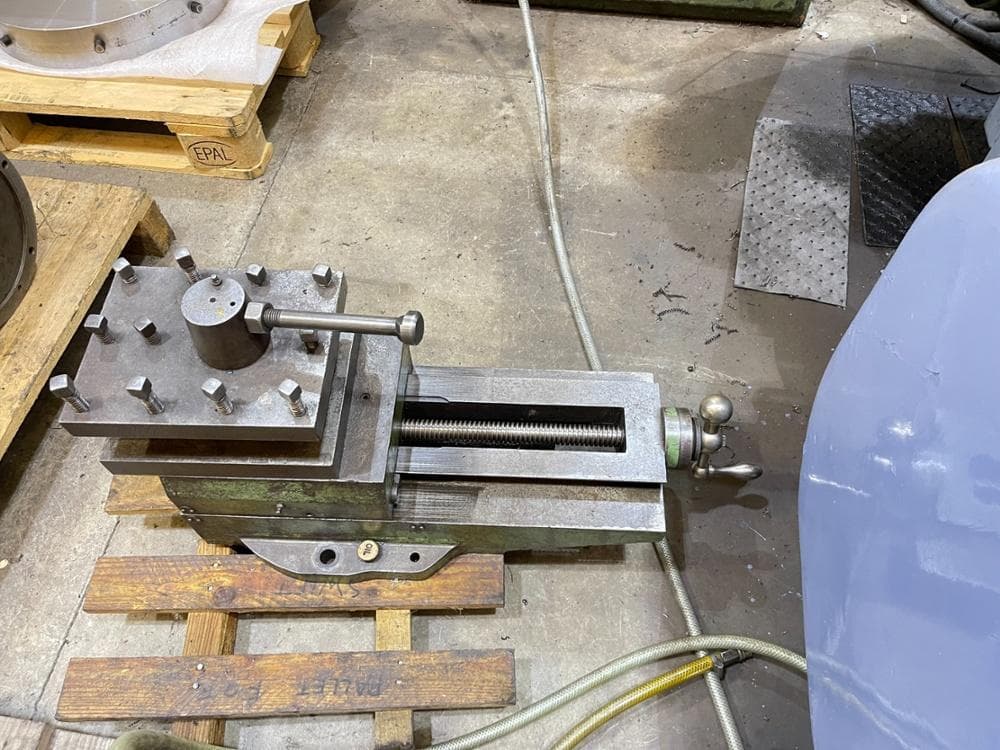

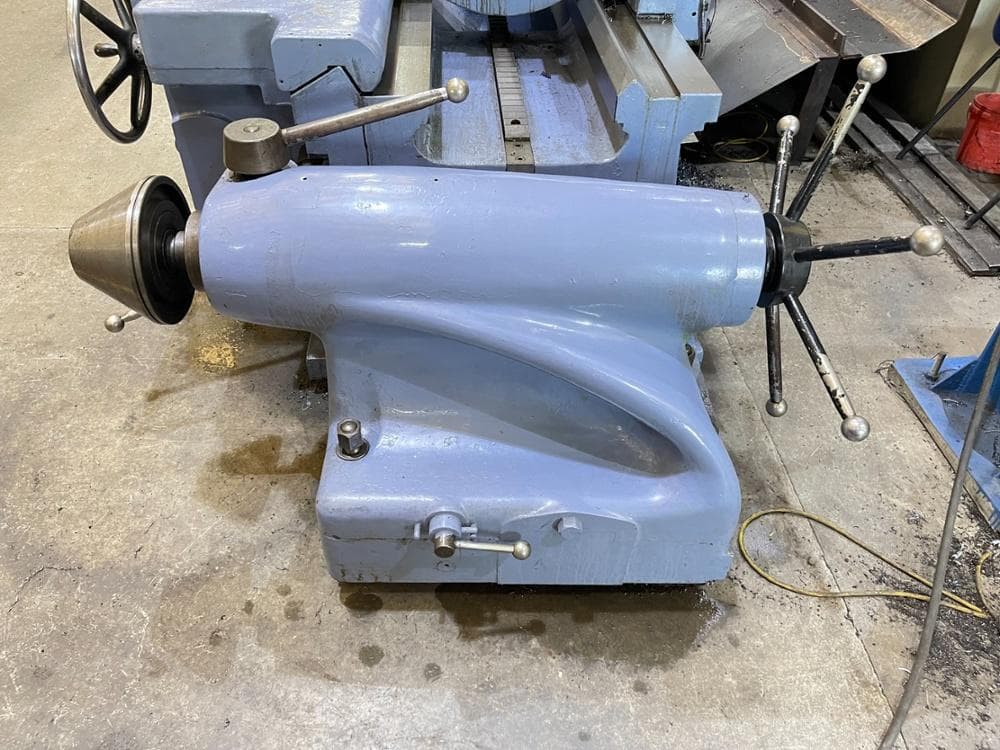

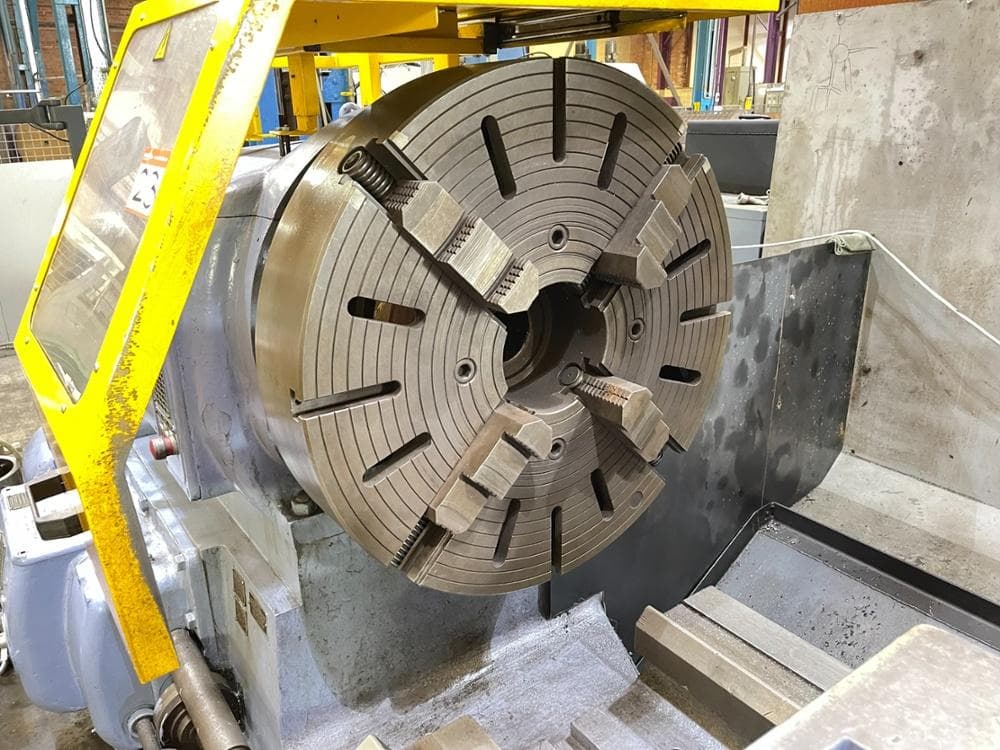

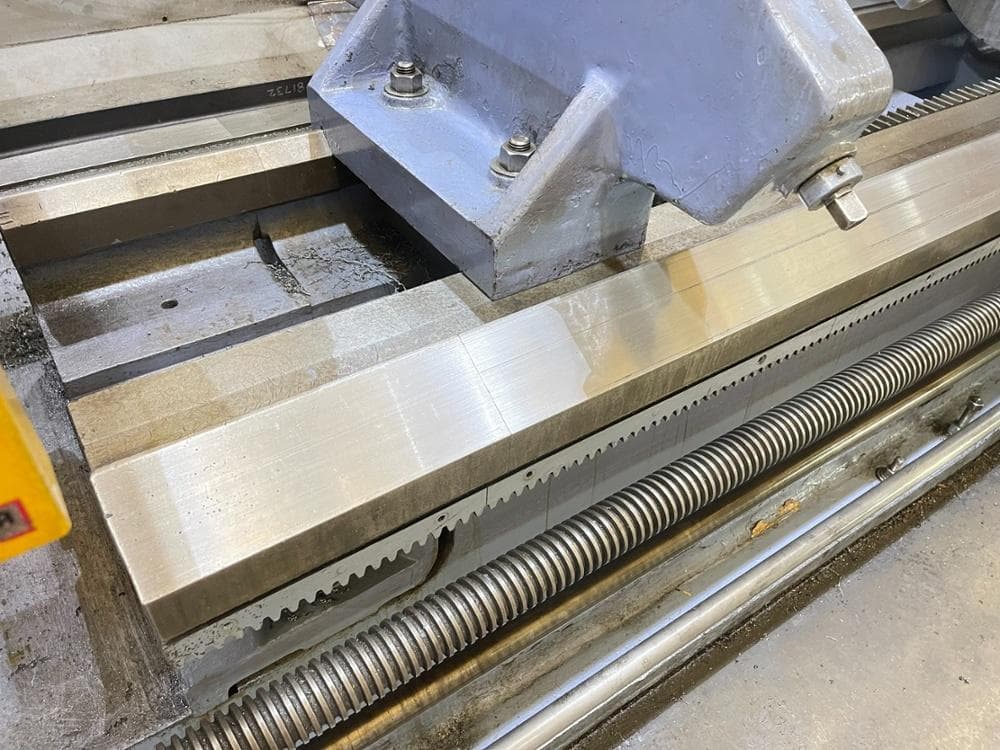

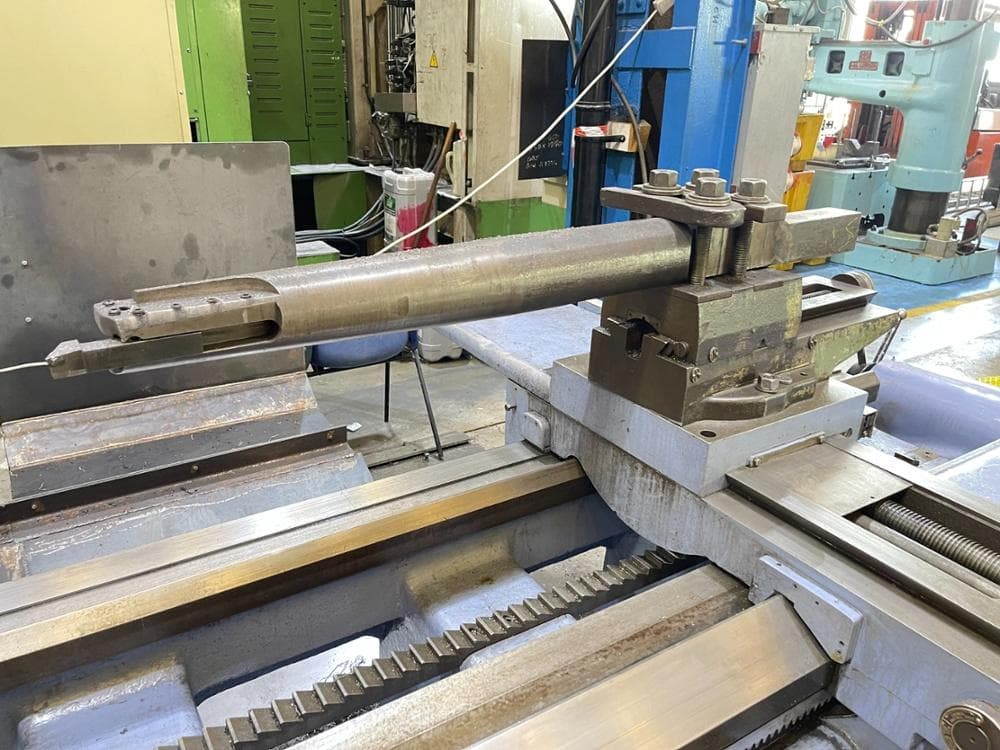

Swing over bed 32”. Swing over cross slide 24”. Swing in gap 64”. Distance between centres 80”. Spindle speeds 2.2 – 535 rpm. Spindle bore 4.3/16”. Width of bedways 30”. 31.1/2” 4 jaw chuck. Tailstock taper 6MT. 16” dia. capacity 3 point roller steady. 3 way toolpost. Additional boring bar toolpost. Interlocked chuck guard. Machine dimensions L x W x H 180” x 78” x 86” high. Approximate weight 10,000 kg
